Custom FRPPultrusion

Custom pultrusion is the production of a fiberglass profile in a cross-section, material or finish that is not in a standard catalog, using a die made for that section. Machs designs and builds the die and runs the profile on its own lines, from a modified standard shape to a fully new section. Send a drawing, a sample or just the application and loads; incomplete details are a fine starting point.

Customization

What Can Be Customized

A custom pultrusion can change any of five things: shape, reinforcement, resin, size, and color and surface.

01

Shape

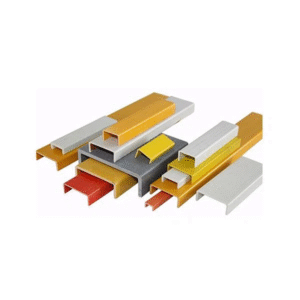

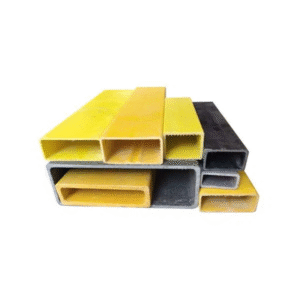

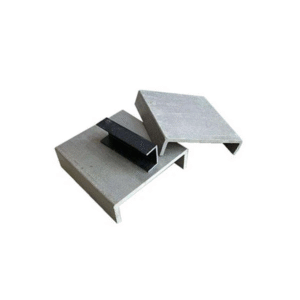

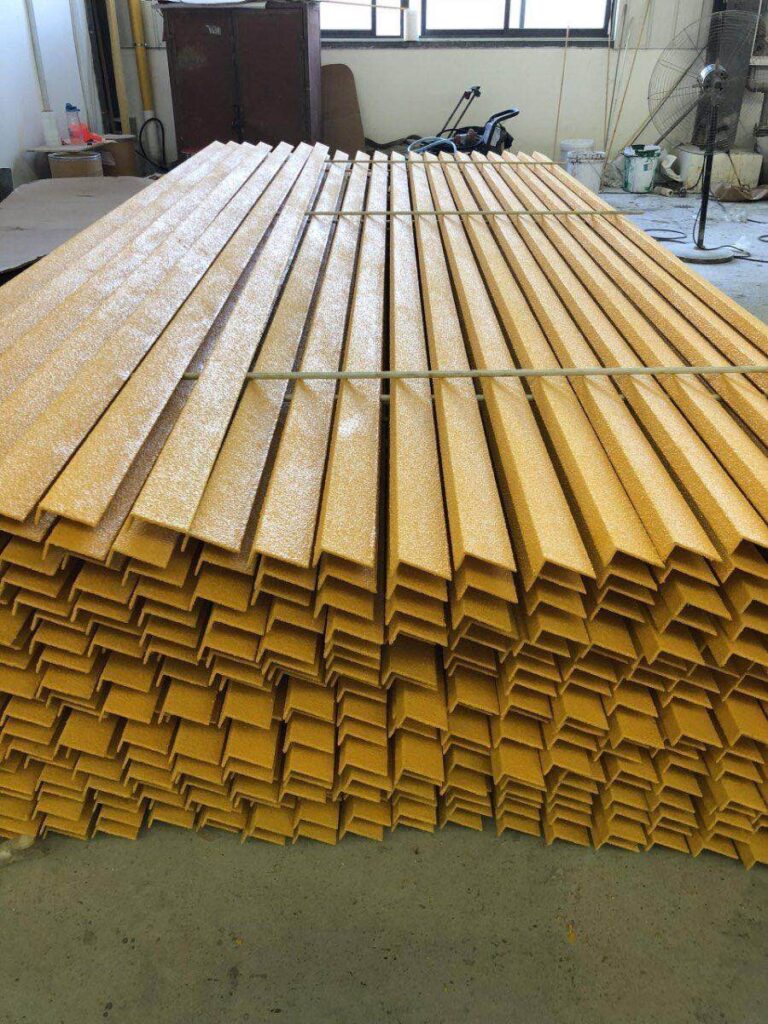

Round and square tubes, I-beams, channels, angles, T-bars, Z-shapes and complex profiles.

Pultruded fiberglass rods
02

Reinforcement

E-glass or S-glass, with carbon fiber or aramid where stiffness matters.

  • E-GlassStandard
  • S-Glass
  • Carbon FiberStiffness
  • AramidStiffness
Resin samples prepared for testing
03

Resin

Polyester, vinyl ester, epoxy or phenolic.

  • Polyester
  • Vinyl Ester
  • Epoxy
  • Phenolic

Chosen for

  • Chemicals
  • Temperature
  • Fire Rating
04

Size

Custom wall thickness and lengths up to 12 m or more.

12m+
Wall thicknessCustom to design
LengthCut to size
Pultruded FRP tubes in red, yellow and black
05

Color and Surface

Standard colors or RAL/Pantone matching, with a surface finish to suit the job.

  • Yellow
  • Grey
  • Green
  • Black
  • RAL / Pantone

Surface

  • Smooth
  • Gritted
  • Anti-Static
  • UV-Resistant
  • Coated
  1. 01Reinforcement
    • E-Glass
    • S-Glass
    • Carbon Fiber
    • Aramid
  2. 02Resin
    • Polyester
    • Vinyl Ester
    • Epoxy
    • Phenolic
  3. 03Length
    12m or more

    Up to 12 m or more; cut to size.

  4. 04Wall Thickness

    Custom to the design.

  5. 05Maximum Profile Envelope

    Reviewed per profile; send the cross-section for a feasibility check.

  6. 06Tolerances

    Industry-standard dimensional tolerances.

  7. 07Fire Performance
    • ASTM E84
    • UL 94

    Fire-retardant grades.

  8. 08Standards
    • ASTM
    • ISO
    • EN
    • GB
    • Customer Specification
  9. 09New Die Lead Time
    3–6weeks

    Typically 3–6 weeks, depending on profile complexity.

  10. 10Minimum Order Quantity
    • Prototypes
    • Small Runs

    Quoted per profile; prototypes and small runs accepted.

Development Process

From Idea to Production Profile

A new profile goes through six stages.

  1. 01
    Stage 01

    Requirements

    Dimensions, application and performance needs, or a drawing or sample.

    Engineer reviewing a drawing and load data
  2. 02
    Stage 02

    Design Review and Quotation

    Engineers review the section and propose material and tooling.

    Engineers reviewing a section drawing on site
  3. 03
    Stage 03

    Die Design and Manufacturing

    Machs designs, orders and commissions the pultrusion die.

    Typically 3–6 weeks
    Cross-section of a pultruded FRP profile
  4. 04
    Stage 04

    Prototype and Approval

    Sample lengths are produced and visual acceptance standards are agreed.

    Checking FRP samples for approval
  5. 05
    Stage 05

    Production and Quality Control

    In-process monitoring and lab testing of the run.

    Impact testing in the Machs lab
  6. 06
    Stage 06

    Finishing and Delivery

    Cutting, machining and export packing as ordered.

    Loading an export container

Start at stage one: send a drawing, a sample or just the application and loads.

Send Your Requirements
Before You Enquire

What to Send for a Quotation

A useful custom pultrusion enquiry includes:

  • Cross-SectionDrawing, CAD file or sample
    01
  • Length and Quantity
    02
  • Application and Loads
    03
  • Operating EnvironmentChemicals, temperature and outdoor exposure
    04
  • Fire, Color or Standard RequirementsIf your project has any
    05

If some of this is unknown, say so; the engineering team will suggest a starting point.

Comparing FRP quotations and drawings
Send Your Enquiry
Cutting FRP to size in the Machs factoryCutting to size before shipment
Beyond Raw Stock

From Profile to Finished Part

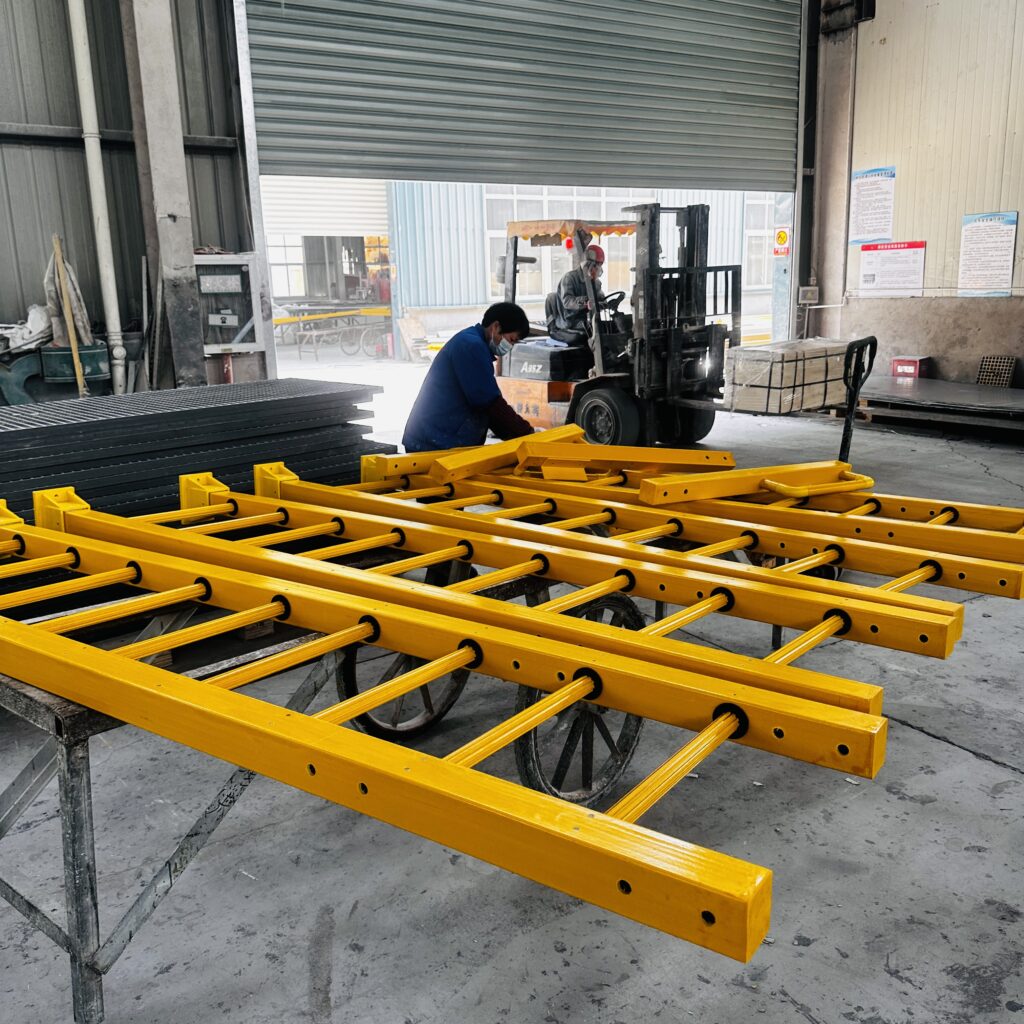

A custom profile does not have to ship as raw stock. Machs can cut it to length, drill and slot it, CNC-machine features, apply surface treatment and supply pre-assembled kits, so the profile arrives ready to install.

  • Custom ProfileRaw stock
  • Cut to Length
  • Drill and Slot
  • CNC-Machine Features
  • Surface Treatment
  • Pre-Assembled Kits
  • Ready to Install

FAQ

Questions About Custom Pultrusion

Samples, fiber choices and die lead times for custom pultruded profiles.

Still Have a Question?

Send us your drawing or ask our engineers directly.

View all FAQs
  • Yes. Send the sample or its drawing, together with the application, and Machs will review the section and material.

  • Yes, where stiffness or weight justifies the cost; E-glass remains the standard choice for most structural sections.

  • Typically 3–6 weeks, depending on the profile, followed by sample production for approval.
