FRP Fabrication &CNC Machining
Machs fiberglass fabrication turns pultruded profiles and grating into finished parts by cutting, drilling, slotting and CNC machining them at the factory. Parts arrive cut to length with holes and openings in place, so site work is limited to assembly. Fabrication can be added to any standard or custom profile order.
Fabrication Operations
Machs fabrication covers the operations most FRP parts need before installation.

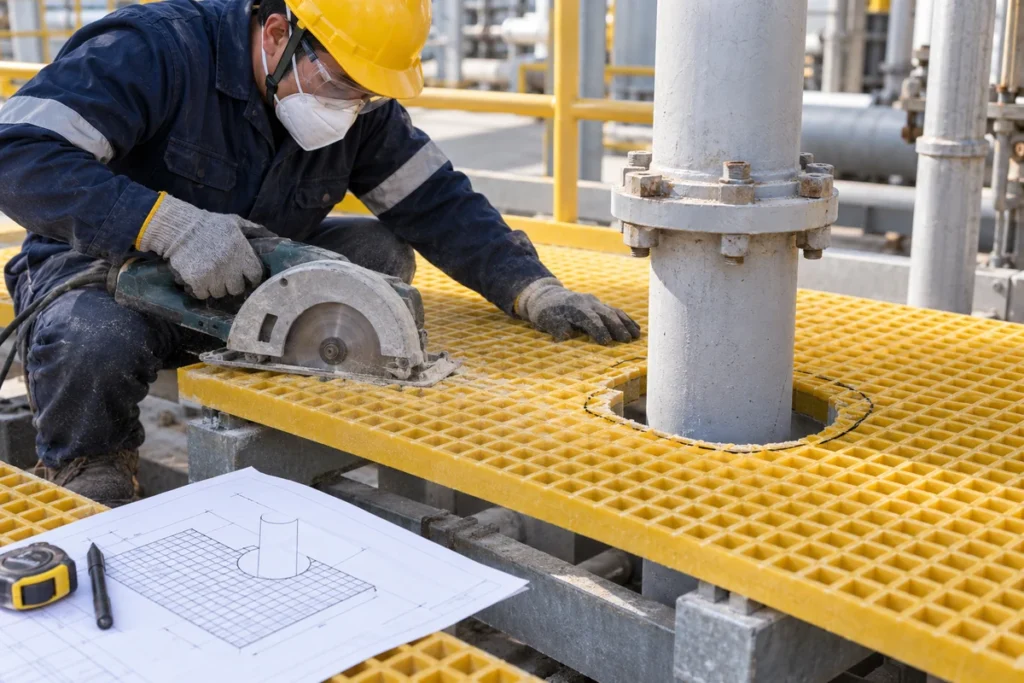

Cutting01/ 05Cutting
Profiles cut to finished length, grating cut to the panel layout.
Drilling and Slotting02/ 05Drilling and Slotting
Bolt holes, slots and notches to the approved drawing.

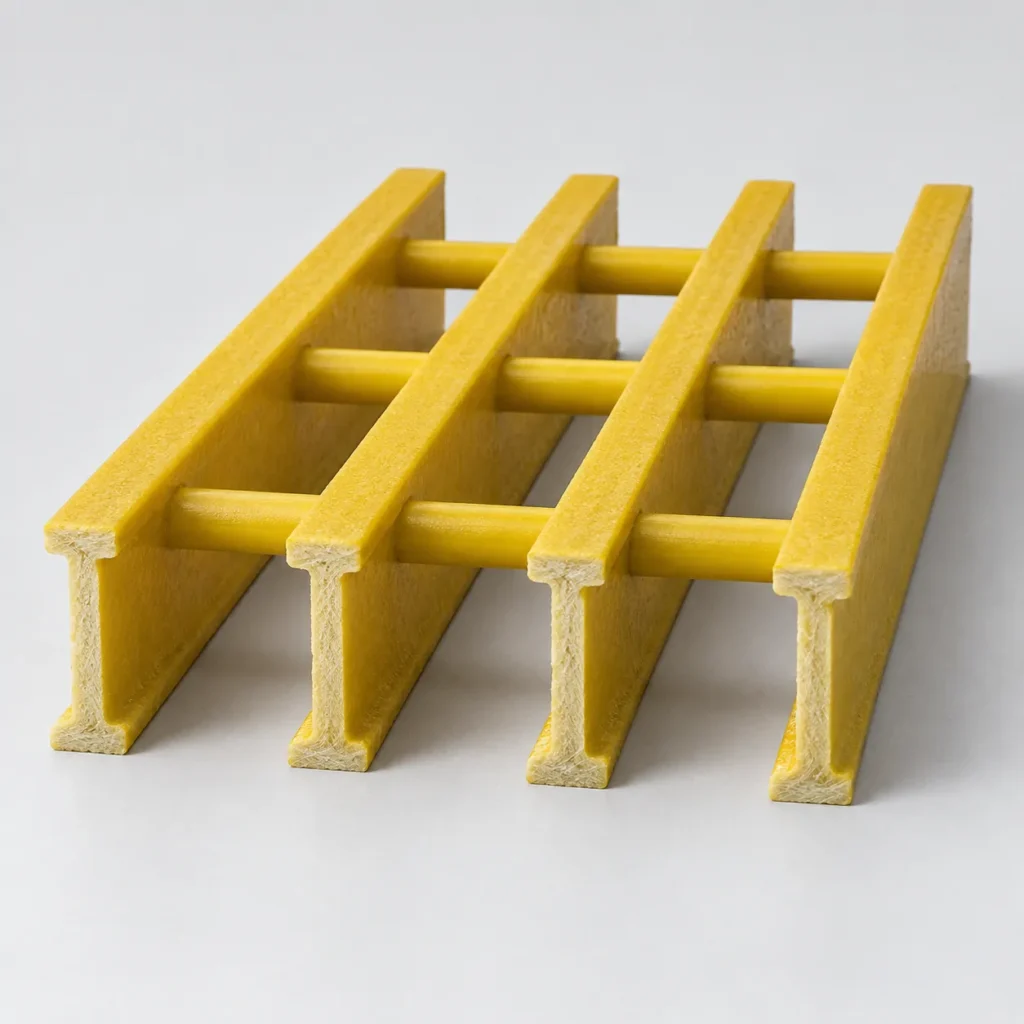

CNC Machining03/ 05CNC Machining
Machined features and repeat patterns for production batches.

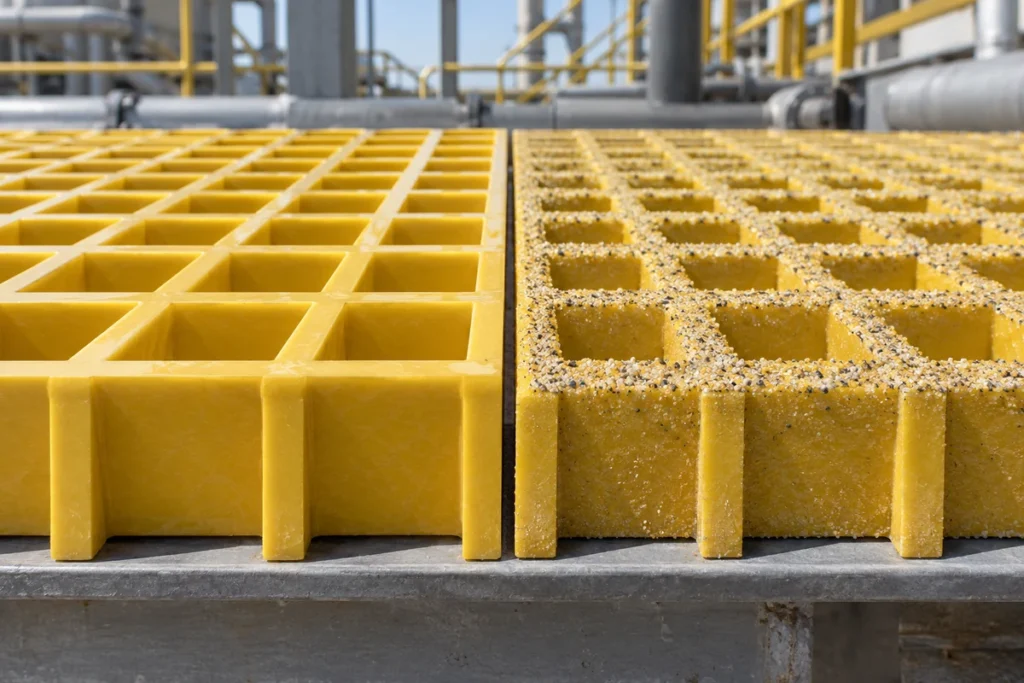

Surface Treatment04/ 05Surface Treatment
Applied to profiles and machined parts as specified.
Assembly Support05/ 05Assembly Support
Members grouped into pre-assembled or knock-down kits.
Fabrication Capabilities
The table lists Machs’ fabrication scope.
On CNC-machined features, depending on part size.
Profiles and parts fabricated to finished length.
- 01Materials
- FRP Profiles
- FRP Grating
All Machs FRP profiles and grating.
- 02Part Length
Up to 12 m or more.
- 03Batch SizePrototypesProduction runs
- 04Machining Tolerance
±0.1–0.2 mm on CNC-machined features, depending on part size.
- 05Hole and Slot Size Range
Holes and slots machined to the approved drawing.
- 06Acceptance
Visual acceptance standards agreed before production.
Why Fabricate at the Factory

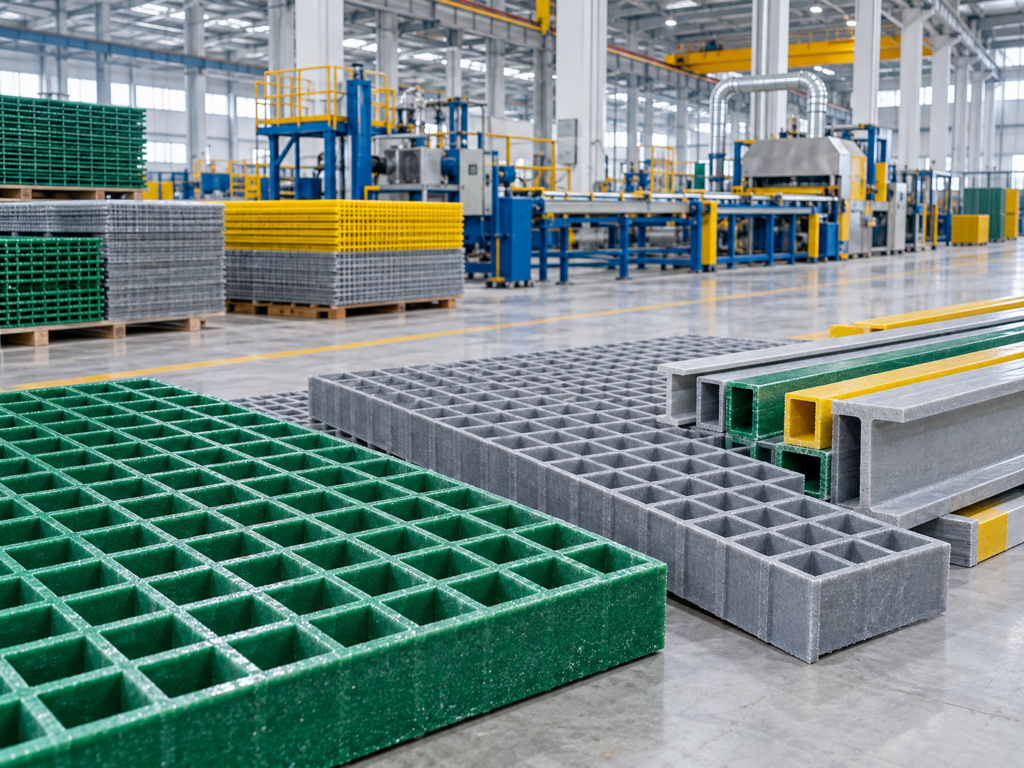

Factory fabrication keeps hole patterns consistent from one batch to the next, because every part is made from the same drawing and set-up.
Factory FabricationOn-Site WorkConsistent Hole Patterns
Same drawing and set-up for every batchMeasured and drilled part by partNo Cutting Dust on Site
Cutting dust stays at the factoryCutting and drilling on siteFaster Installation
Crews bolt parts togetherCrews measure and drill in place
On a repeat platform or railing design, the saving grows with every kit.
Typical Fabricated Parts
Common fabricated items include railing kits, platform frames, grating panels, angle clips, channels and insulating parts.

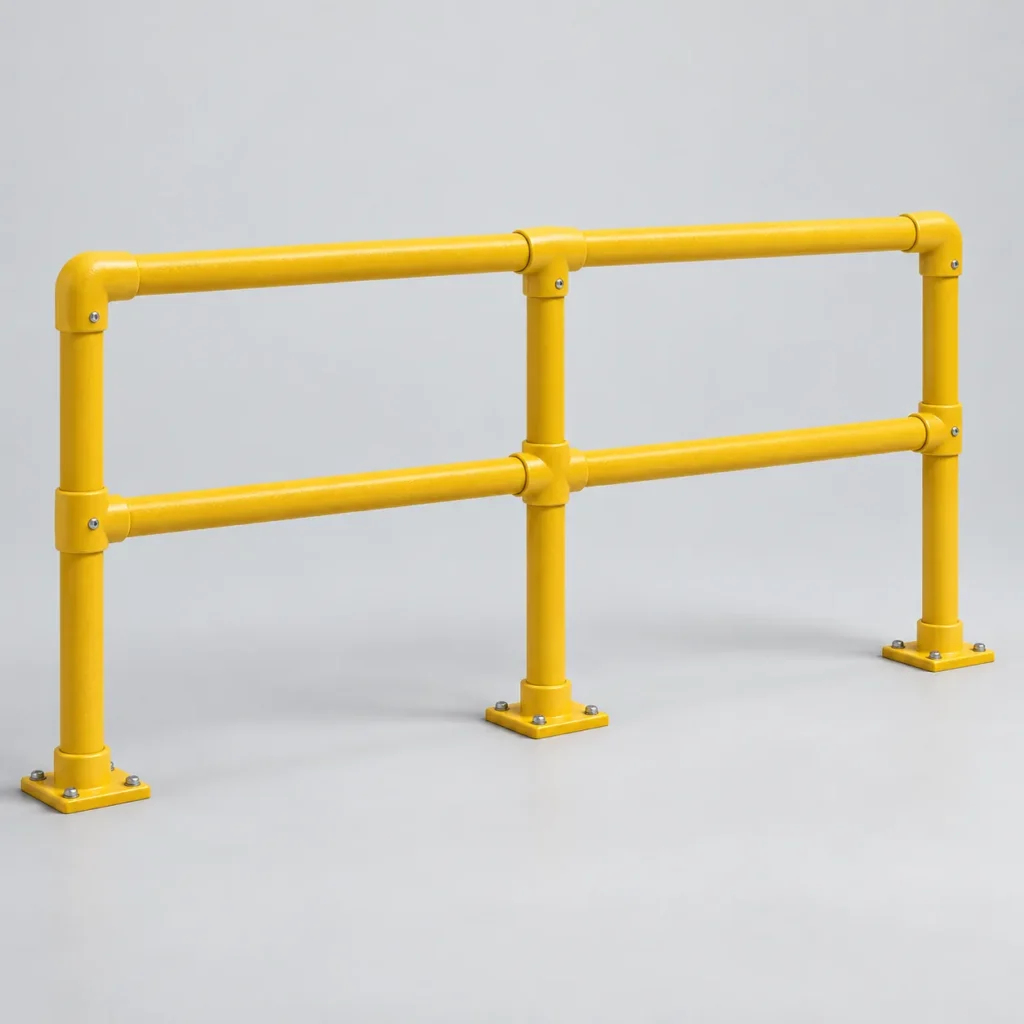

01Handrail and Guardrail Kits
Handrail and guardrail kits with drilled posts and rails.
- Drilled posts
- Drilled rails
02Platform Frames
Platform frames cut and drilled to the member schedule.
- Cut
- Drilled
- To member schedule
03Grating Panels

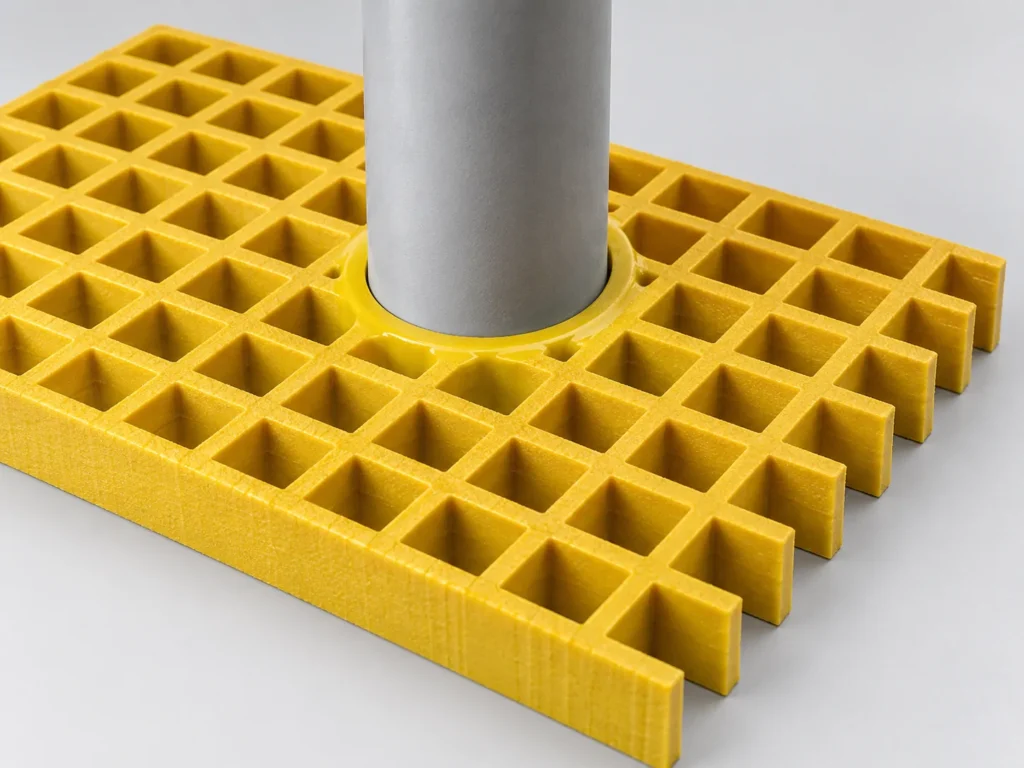

Grating panels cut to layout with openings for pipes and equipment.
- Cut to layout
- Pipe openings
- Equipment openings
04Angle Clips
Angle clips cut and drilled for connections.
- Cut
- Drilled
05Drilled Channels
Channels with bolt patterns in the web and flanges.
- Web bolt pattern
- Flange bolt pattern
06Insulating Flat-Bar Parts
Machined flat-bar insulating parts.
- Machined
Have a different part in mind? Send the drawing and Machs will quote it.
Send Your DrawingWhat to Send for a Fabrication Quote
For a fabrication quote, send:
- A drawing with hole positions dimensioned from a clear datum
- The finished lengths and quantities
- The profile or grating type
- Any finish or kitting requirements
Only a Sketch?
If you only have a sketch, Machs can prepare the CAD drawing for your approval.
Repeat Parts?
For repeat parts, a cutting schedule lets Machs plan stock lengths and reduce offcuts.
FAQ
Questions About Fiberglass Fabrication
Tolerances, sealing and kitting for fabricated FRP parts.
Typically ±0.1–0.2 mm on CNC-machined features, depending on part size; mark critical tolerances on the drawing.
In chemical or constantly wet service, cut ends and holes are usually sealed with a compatible resin; state the exposure and Machs will advise.
Members can be grouped into kits for each assembly; tell Machs how you want parts identified.
Get a Quote
Discuss Your Project with Machs
Send your drawing, quantities and cutting schedule, and Machs will quote the profiles and fabrication together.
Helpful to include
- A drawing with hole positions from a clear datum
- Finished lengths and quantities
- Profile or grating type
- Finish or kitting requirements
