M clip01M Clip (Saddle Clip)

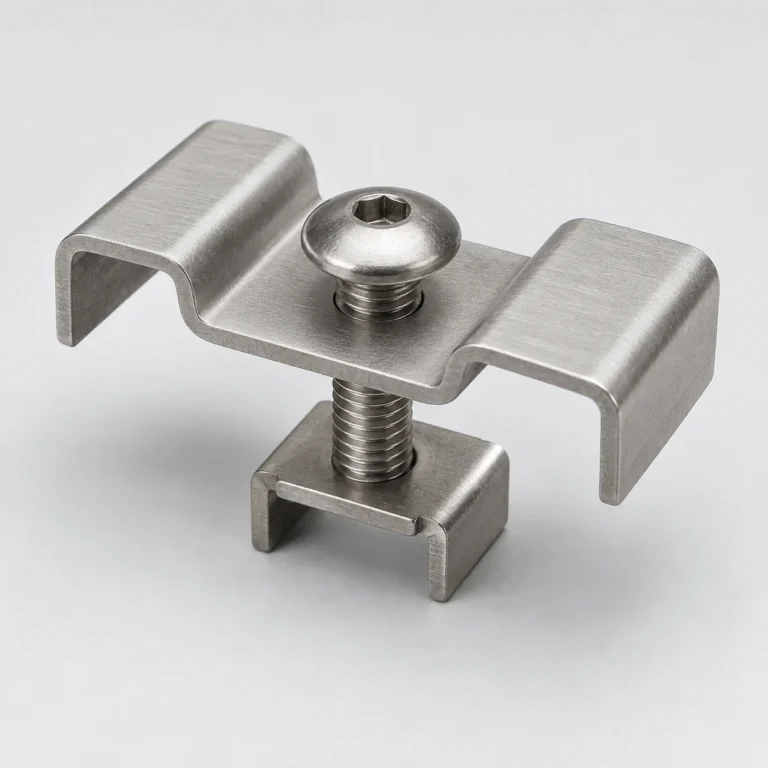

U-shaped clip with a center bolt that clamps two adjacent bars to the support.
- Heavy duty
- Vibration
- Home
- Products
- Fiberglass Grating
- Grating Clips

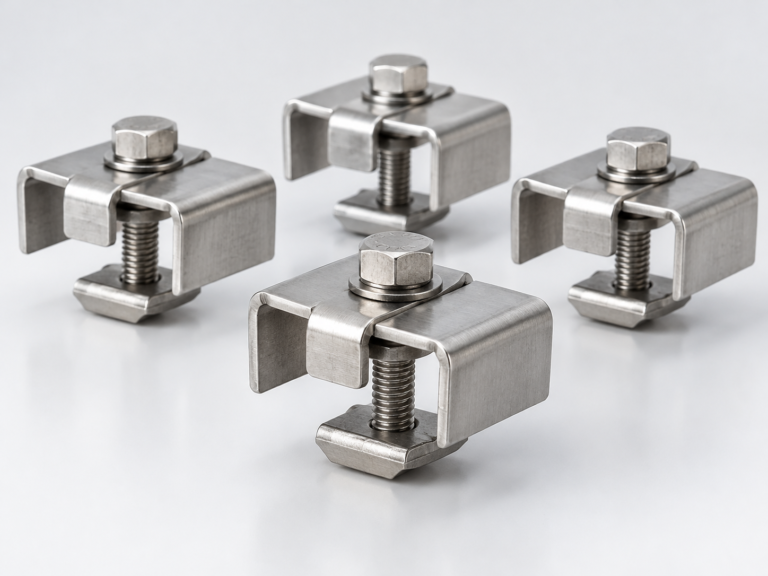

Fiberglass GratingClips
Machs grating clips are stainless steel hold-down fasteners that lock fiberglass grating panels to their supports, so the panels cannot shift, lift or rattle yet can still be removed for maintenance. Each clip type suits a particular grating type and support condition. As a fiberglass grating manufacturer, Machs supplies the matching clips, and they can ship with Machs molded or pultruded grating, so the panels and their fixings arrive in one order.
Years making FRP grating
in our own plant
Product range
Grating Clip Products
M clip01

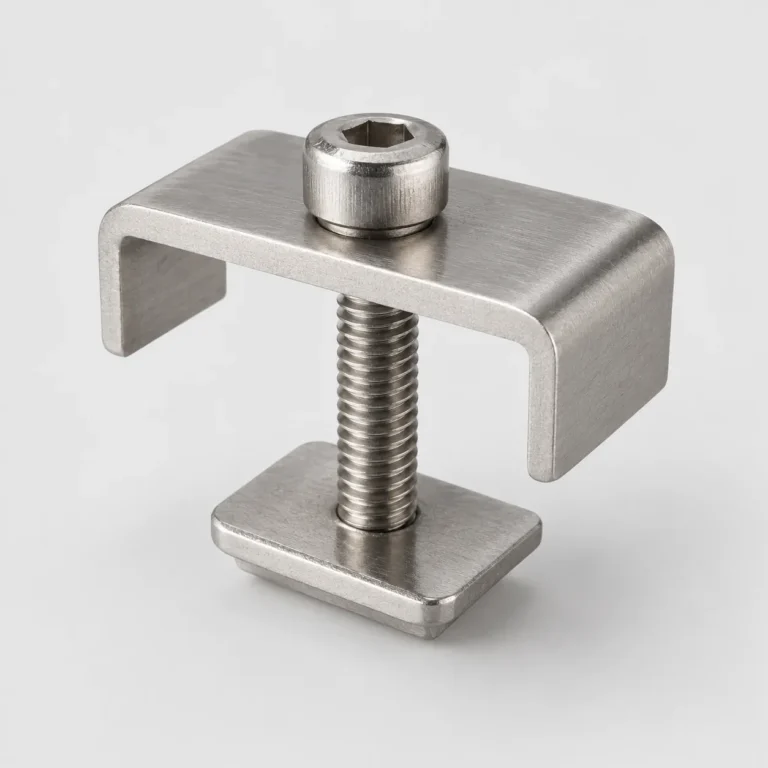

C clip02C Clip
Grips the bars of two adjoining panels together from underneath.
- Stops uplift
- Modular floors

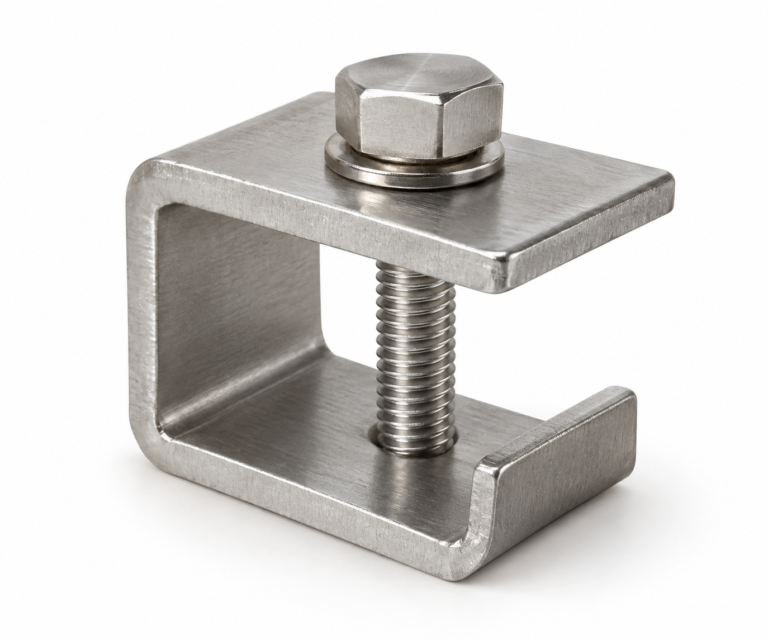

G clip03

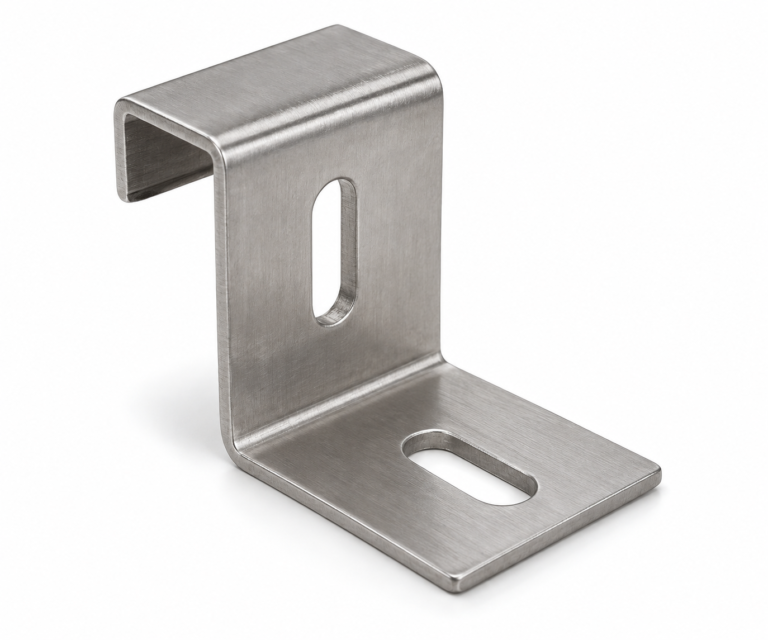

L clip04

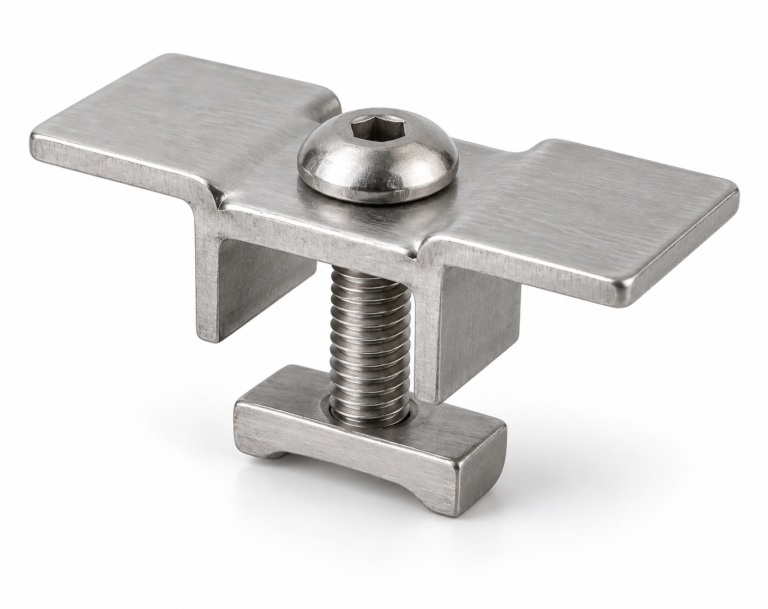

T clip05Clip Types
Grating Clip Types and Where to Use Them
Five clip types cover most fiberglass grating installations.
How it fixes
U-shaped clip with a center bolt that clamps two adjacent bars to the support.
Typical use
Heavy-duty areas and floors with vibration; needs a hole in the support.
Selection
How to Choose a Grating Clip
Start with the grating, then the support.
- 01Step 1 · Grating
Start with the Grating
Molded grating needs a clip that fits its square mesh, while pultruded grating needs one that follows its parallel bearing bars.
- 02Step 2 · Support
Check the Support
Next, check whether the support can be drilled: if not, a G clip fixes to the flange from above.
- 03Step 3 · Uplift
Allow for Uplift
Finally, raise the clip count or choose a heavier type where vibration, wind or water flow could lift the panels.
J, U, W, Paw and CSSM clips and clamps are also available on request.
- J
- U
- W
- Paw
- CSSM
Material
Why Grating Clips Are Made from 316 Stainless Steel
A clip has to last as long as the grating it holds, so it must resist the same corrosive conditions.
Grade 316 stainless steel resists pitting and crevice corrosion in warm, chloride-bearing environments better than standard grades, which is why it is the recommended choice for chemical plants, coastal docks and wastewater facilities.
- Pitting corrosionresists
- Crevice corrosionresists
- Warm, chloride-bearing sitessuited

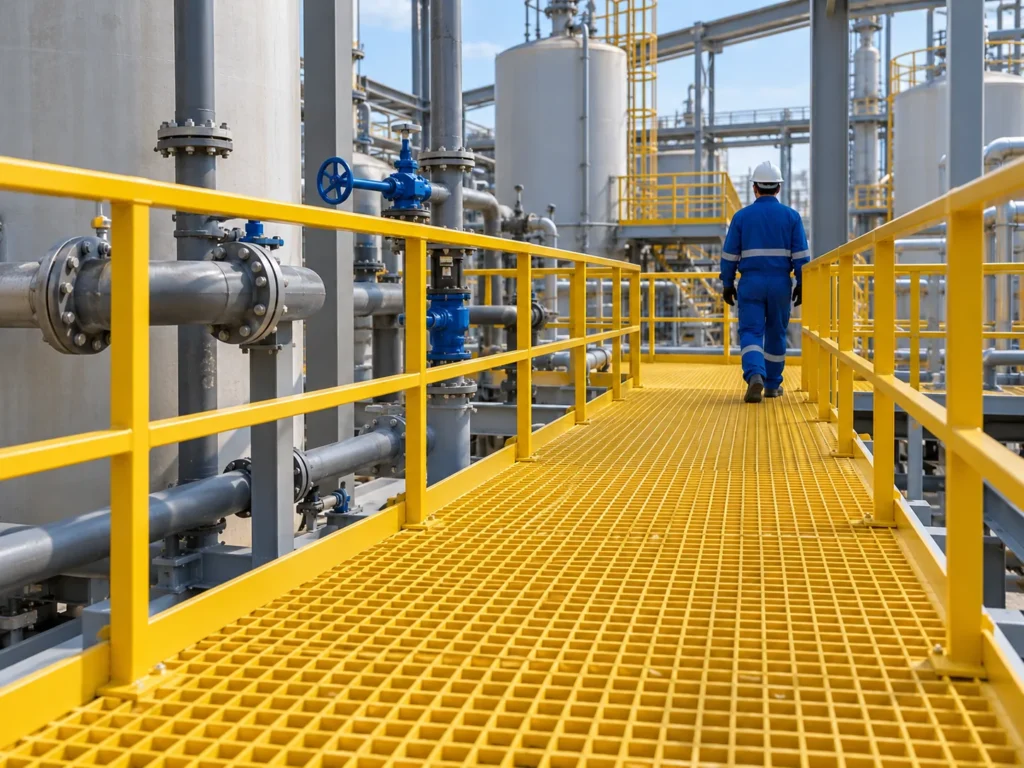

316 RECOMMENDEDChemical plants

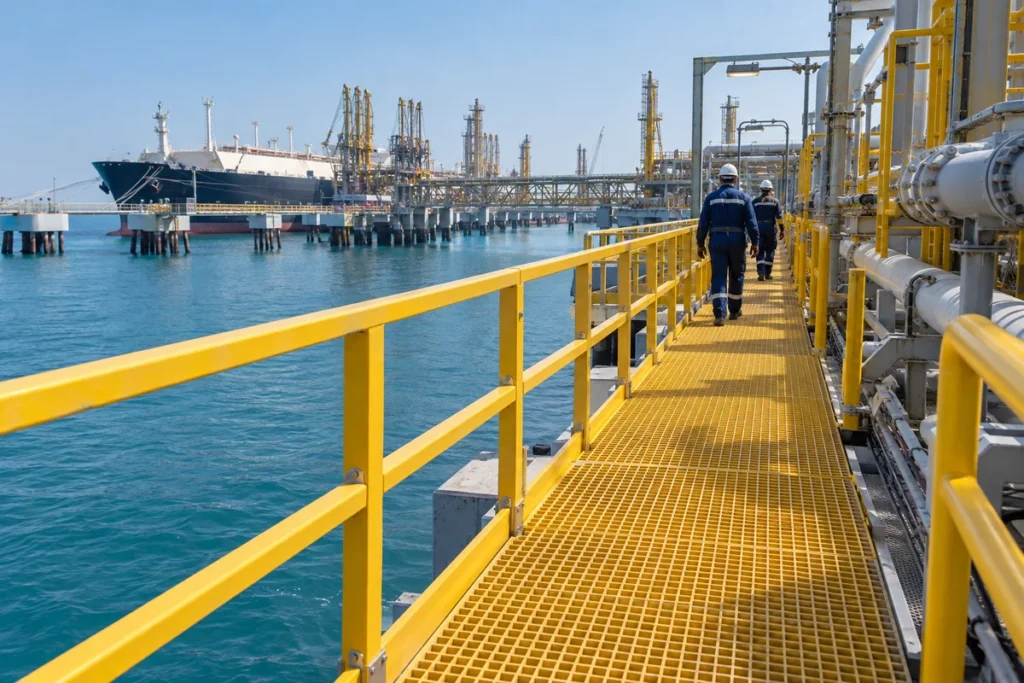

316 RECOMMENDEDCoastal docks

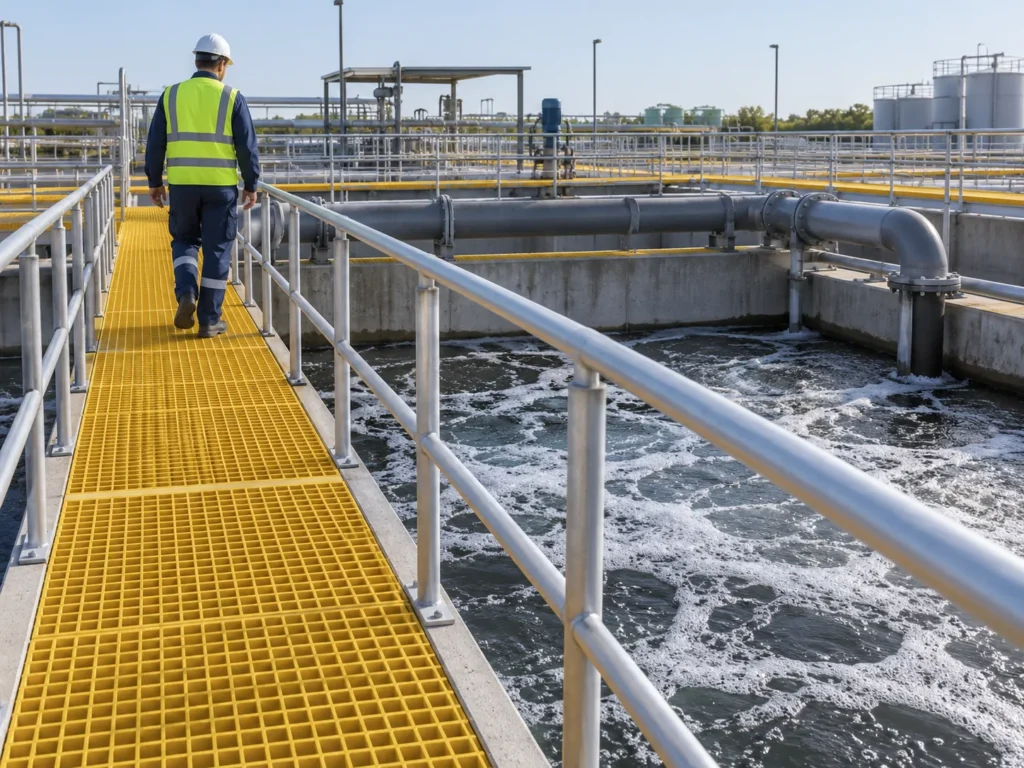

316 RECOMMENDEDWastewater facilities
Milder, dry sites
Coated carbon steel clips can suit milder, dry locations.
Specifications
Grating Clip Specifications
Machs supplies grating clips to the following specifications.
Bolt, nut and washer includedSizes by grating depth
- MaterialStainless steel; 316 recommended for chemical, marine and wastewater sites
- Clip typesM, C, G, L and T; other types on request
- Sizes by grating depthFor 25, 30, 38 and 50 mm grating
- Bolts and nuts includedBolt, nut and washer included, with bolt length matched to the grating depth
- PackingBoxed by type and size and shipped with the grating order
Installation
Clip Spacing and Installation
Correct spacing keeps panels secure without overloading the bars.
- Clip at about 1.2 m spacing
- Extra clip at corners and edges
- Joint between panels
- Spacing~1.2 m
About one clip per 1.2 m of panel length and width.
- Minimum4+
At least four clips per panel, more under heavy or dynamic loads.
- Critical pointsCorners
Add clips at corners, mid-span joints and edges, where panels tend to lift.

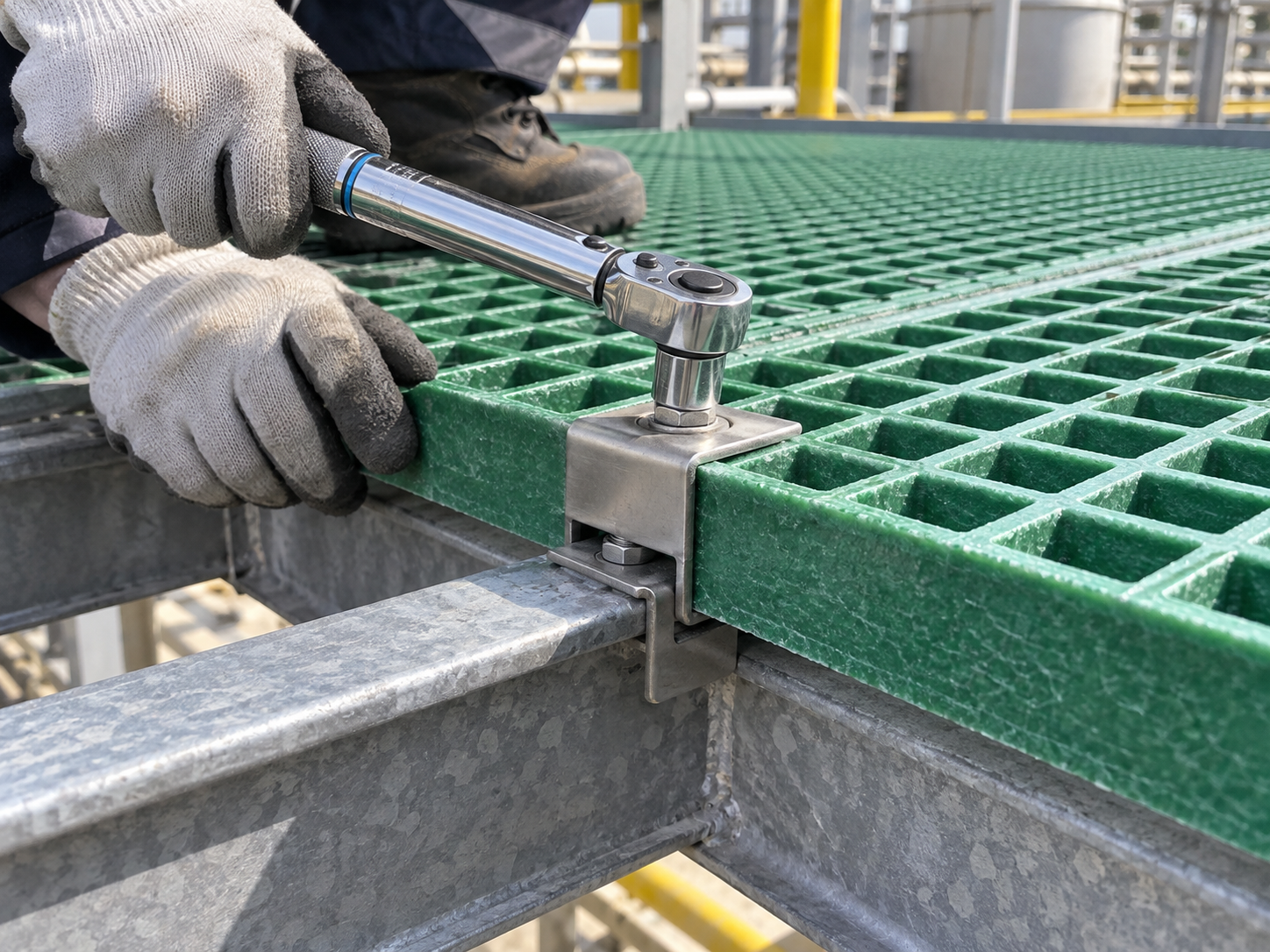

TighteningUse a torque wrench to the recommended force; over-tightening can crush the bars, especially on pultruded grating.
One Order
Order Clips with Your Grating
Ordering clips with the grating avoids a second purchase and mismatched sizes.
- 01Send the panel layout and support details
- 02Machs matches the clip type and size
Matched to the grating.
- 03Quantity counted from the layout
The Panel Layout Calculator on this site gives a first panel count.
Panels and fixings in one order
Shipped togetherClips boxed by type and sizeFAQ
Questions About Grating Clips
Clip type, quantity and fit for Machs molded and pultruded grating.
Use an M clip where the support can be drilled and you want two bars clamped firmly; use a G clip where drilling or welding is not allowed.
At least four, at roughly 1.2 m spacing, with more at corners, joints and under heavy loads.
Not always. Molded square mesh and pultruded bearing bars need clips that match their geometry, so state the grating type and depth when ordering.
Get a Quote
Discuss Your Project with Machs
Send the grating type and depth, the support details and the panel layout, and Machs will quote the clips with your grating.
Helpful to include
- Grating type and depth
- Support details: beam size and whether it can be drilled
- Panel layout or panel count
- Site conditions: chemicals, coastal or wastewater
