MACHS / NANTONG, CHINA

FRP Grating Manufacturer

Molded & Pultruded Fiberglass Grating, Made in Our Nantong Factory

MACHS manufactures molded and pultruded FRP (GRP) grating in Nantong, China. We supply cut-to-size panels for walkways, platforms, trench covers and stair treads, with published load data, unit weights and SGS fire test reports for the grating you order.

Get a free quoteRequest test reports

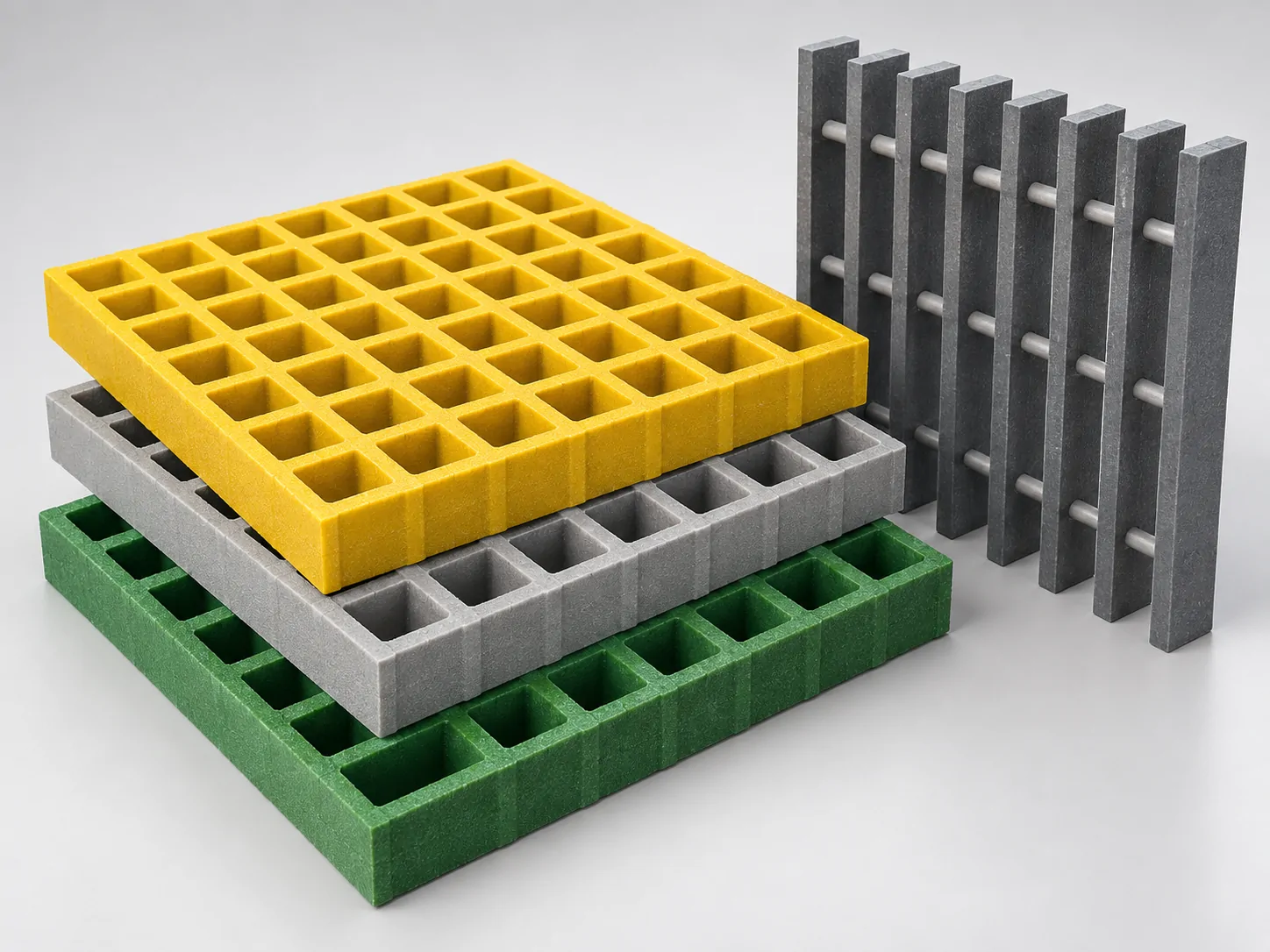

Molded and pultruded FRP grating panels in yellow, grey and green
ABS assessedFRP grating product design
SGS-tested samplesASTM E84 Class A
13–60 mm molded26–51 mm pultruded
Quote within 24 hoursNDA available
01 / SPECIFICATIONS

FRP Grating Specifications at a Glance

CATALOGUE DIMENSIONSMACHS / FRP GRATING
Molded FRP GratingPultruded FRP Grating
Manufacturing processOne-piece molding, glass roving + resinPultruded load bars + cross rods, assembled
Strength directionBi-directional (square mesh)Uni-directional, along the load bars
Thickness / bar height13–60 mm26, 38 and 51 mm
Mesh / open areaSquare mesh 19×19 to 83.3×83.3 mm; rectangular 25×100, 25×152, 38×100, 38×152 mm; open area 42–87%I-bar and T-bar profiles; open area 18–60%
Standard panel sizes1220×4000, 1220×3660, 1220×2440, 915×3050 mm (38 mm also 1524×3050 and 1524×4000)Lengths 3050 / 3660 / 6100 mm (up to approx. 12 m); widths 915 / 1220 mm (up to approx. 1500 mm)
Weight (example)38 mm, 38×38 mesh: 19.5 kg/m²I4015 (38 mm, 40% open): 23.5 kg/m²
SurfaceStandard top or grit topI-bar: grit or grooved top · T-bar: grit top
Fire testASTM E84 Class A (38 mm, 38×38 mesh, grit top, SGS-tested)ASTM E84 Class A (I-6015, 38 mm, SGS-tested)
Best forChemical plants, wet areas, trench covers, general walkwaysLong spans, heavy loads, offshore and bridge walkways

Standard sizes are catalogue sizes. Availability of each configuration is confirmed with your quotation.

02 / PRODUCT TYPES

Types of FRP Grating We Manufacture

38 mm molded FRP grating with 38x38 mm square mesh
MOLDED / SQUARE & RECTANGULAR01

Molded FRP Grating

THICKNESS13–60mm
MESH RANGE19–83.3mm
BEARING2-waysquare mesh

Made in a single mould by interweaving continuous glass roving with resin, molded grating has equal strength in both directions and excellent corrosion resistance. Panels can be cut on site with standard tools. We produce square mesh from 19×19 mm to 83.3×83.3 mm and a range of rectangular meshes, from 13 mm to 60 mm thick. It is the most popular and most economical choice for industrial walkways and platforms.

Standard topGrit topCut-to-size

Explore Molded Grating

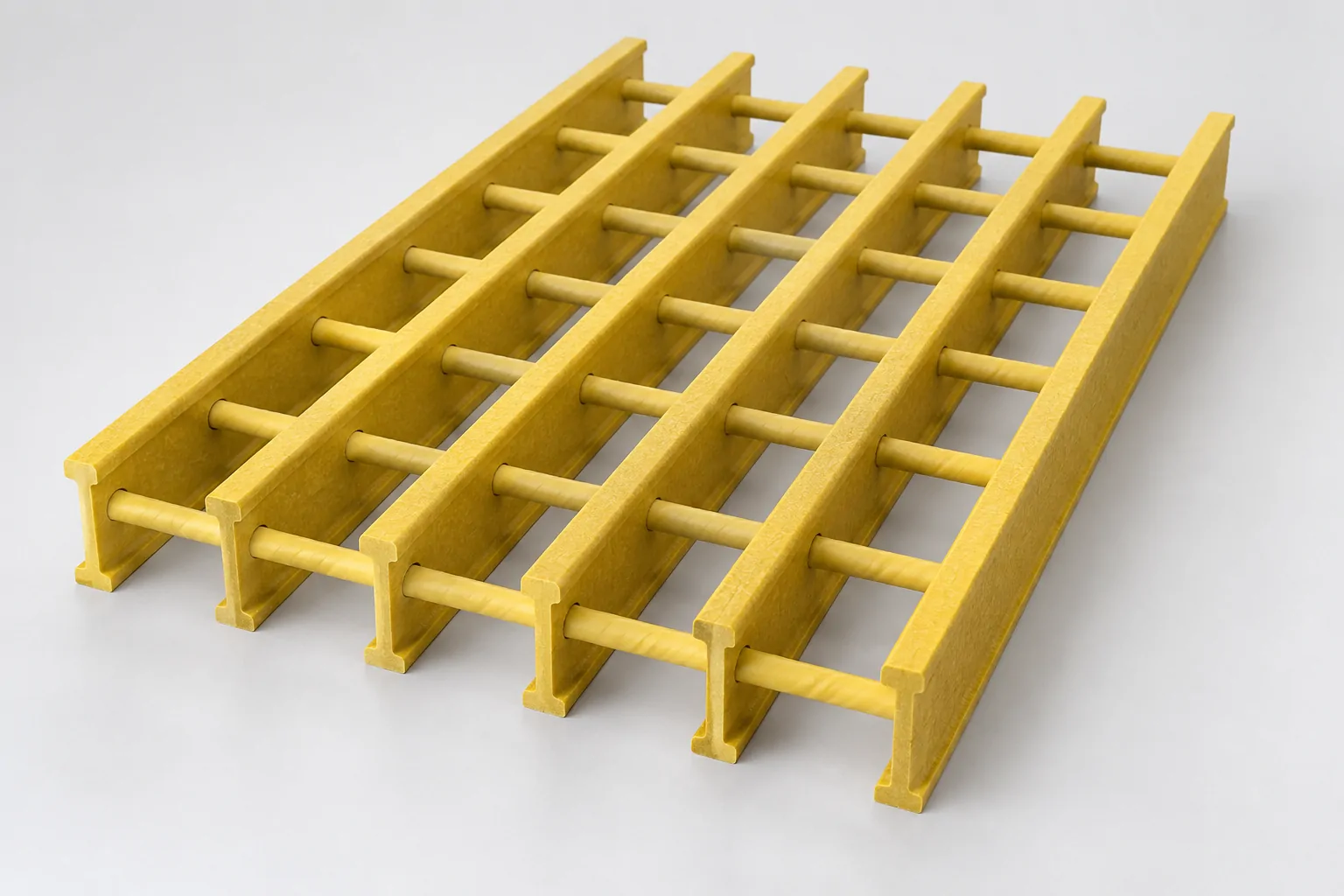

Pultruded FRP grating with I-bar load bars and cross rods
PULTRUDED / I-BAR & T-BAR02

Pultruded FRP Grating

BAR HEIGHT26–51mm
MAX. LENGTH~12m
CROSS RODS152mm centres

Pultruded grating uses I-bars or T-bars locked together with cross rods at 152 mm centres. Because the load bars run continuously in one direction, pultruded grating carries heavier loads over longer spans, which reduces the number of supports you need. It is the choice for offshore decks, bridge walkways and heavy-traffic platforms. Panels are available up to approx. 12 m long.

I-barT-barDirectional bearing

Explore Pultruded Grating

Specialty versions

Mini Mesh Grating (19×19 and 20×20 mm)

Small openings (42% open area) stop heels, small tools and debris from falling through. Available from 14 mm to 40 mm thick. Suited to pedestrian bridges, barefoot areas, wheelchair ramps and public spaces.

Heavy-Duty Grating

60 mm molded grating (38×38 mesh, 50.43 kg/m²) and the 25H heavy-duty rectangular series are built for carts, trolleys and light vehicle traffic in plants and docks.

Rectangular Mesh Grating

Rectangular meshes such as 25×100, 25×152 and 38×152 mm are directional. They are stronger along one side, so they suit narrow walkways, stair treads and long, narrow trenches.

Covered Grating

A solid FRP plate (smooth or gritted) bonded to molded grating gives a closed floor. Use it where liquids, small parts or light must not pass through. Cover plate thickness and surface are specified to order.

Phenolic Grating

Phenolic resin is specified for offshore platforms, tunnels, mines and enclosed spaces where fire behaviour is critical. It is available in 38×38, 19×19, 38×152 and 50×50 mm meshes.

Grating for Food Plants

A food-grade isophthalic resin system for food and beverage processing areas.

Not sure which type you need?Send your span, loads and environment for a grating recommendation.

Ask an engineer
03 / SURFACES & COLOURS

Surface Finishes & Colours

Standard top surface of molded FRP grating
Grit top anti-slip surface of FRP grating

Surfaces

  • Standard top: the moulded surface of the grating bars. It is easy to clean and suits most indoor walkways.
  • Grit top (code G): sand grit bonded into the surface for maximum grip on oily, wet or icy floors. It is recommended for outdoor and wet areas.
  • Pultruded I-bar grating: grit top or grooved top.
  • Pultruded T-bar grating: grit top.
  • Covered grating: smooth or gritted cover plate, with the thickness specified to order.

Colours

Current standard colours:

TECHNICAL REFERENCEMACHS / FRP GRATING
RAL 1003RAL 6010RAL 7004RAL 7015RAL 7035
Signal YellowGrass GreenSignal GreySlate GreyLight Grey

Phenolic grating is supplied in dark brown. Other colours (such as orange-red) are available on request. Availability of each colour by resin, surface and size is confirmed with your quotation. Pigment is mixed through the resin, so colour doesn't wear off like paint.

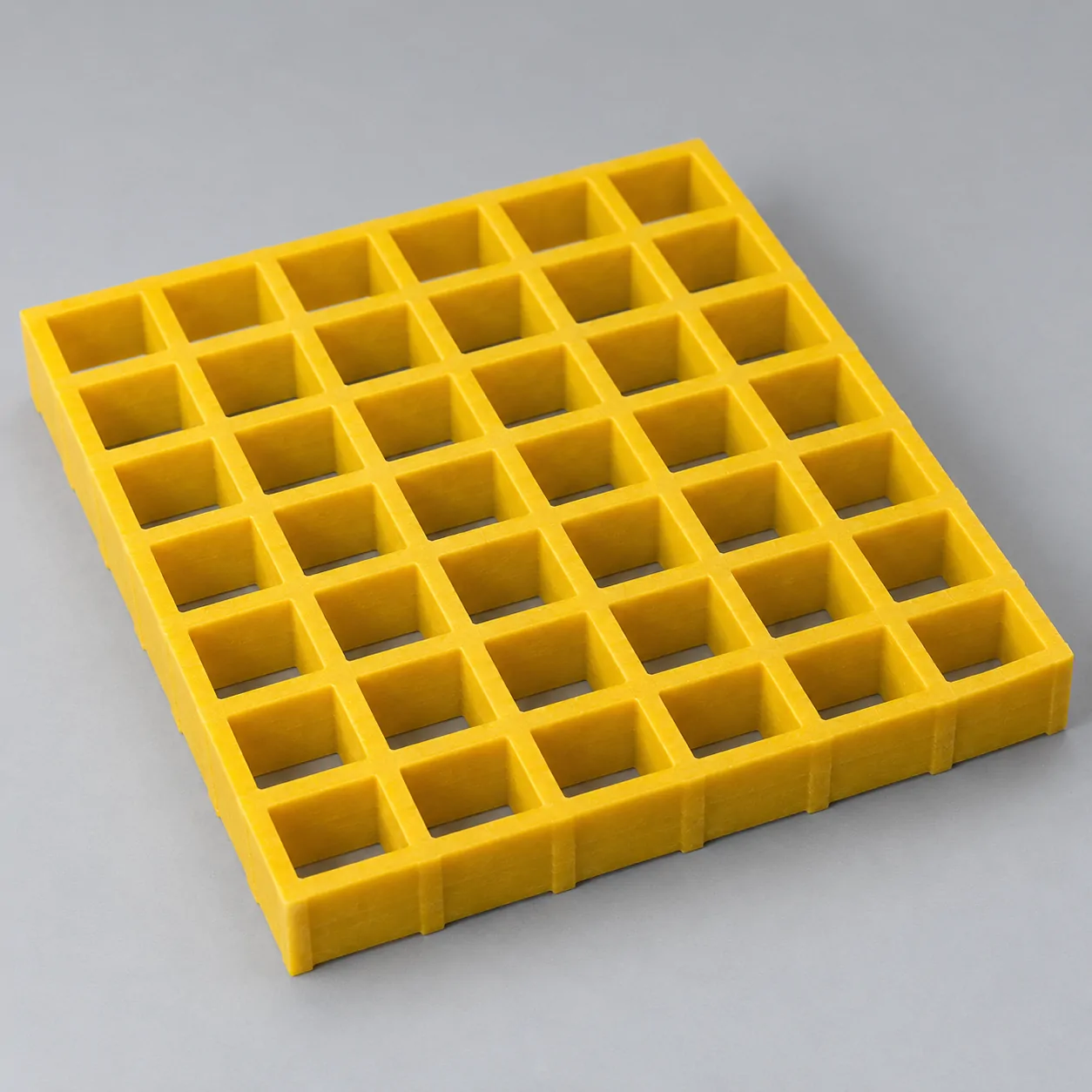

FRP grating in RAL 1003 signal yellow
RAL 1003Signal Yellow

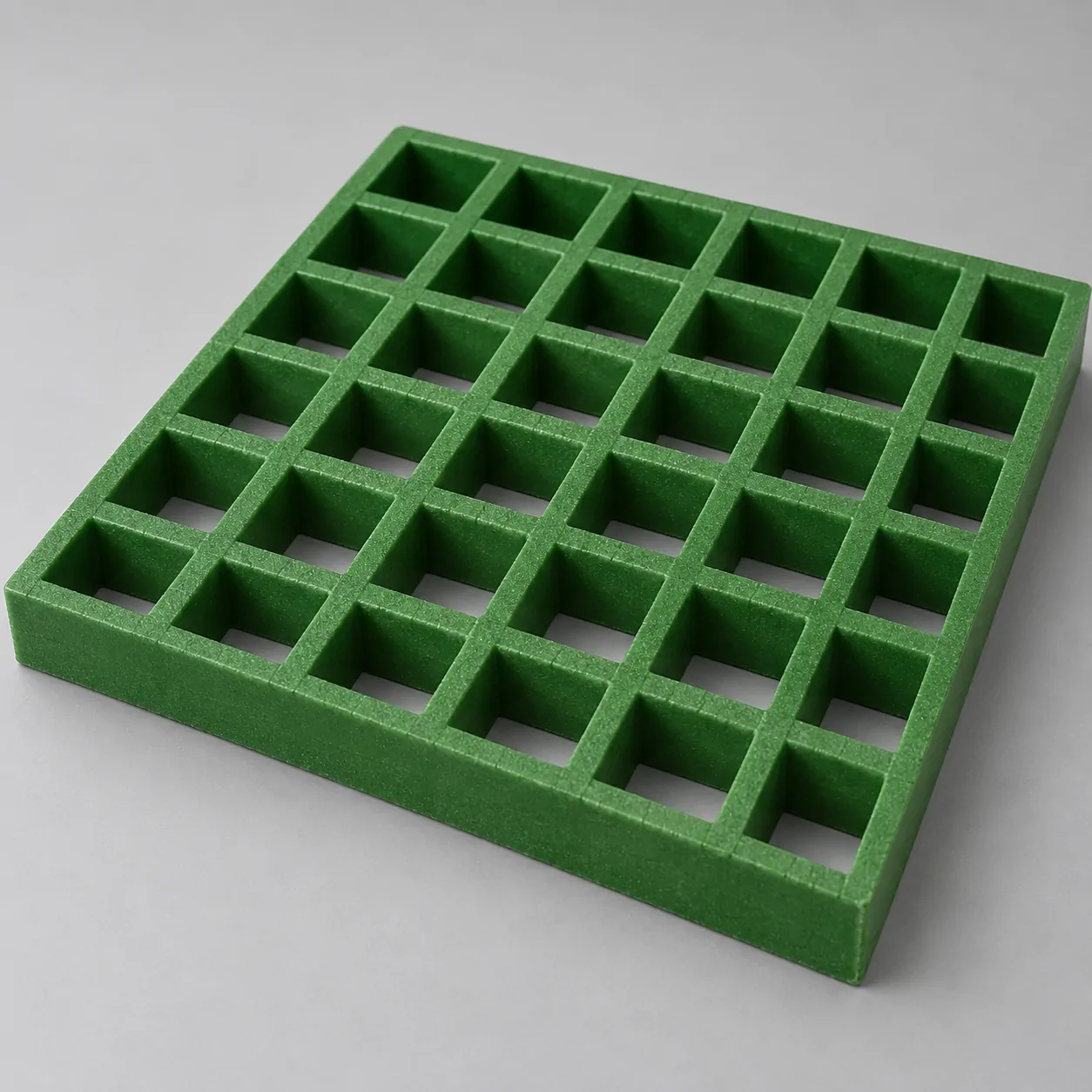

FRP grating in RAL 6010 grass green
RAL 6010Grass Green

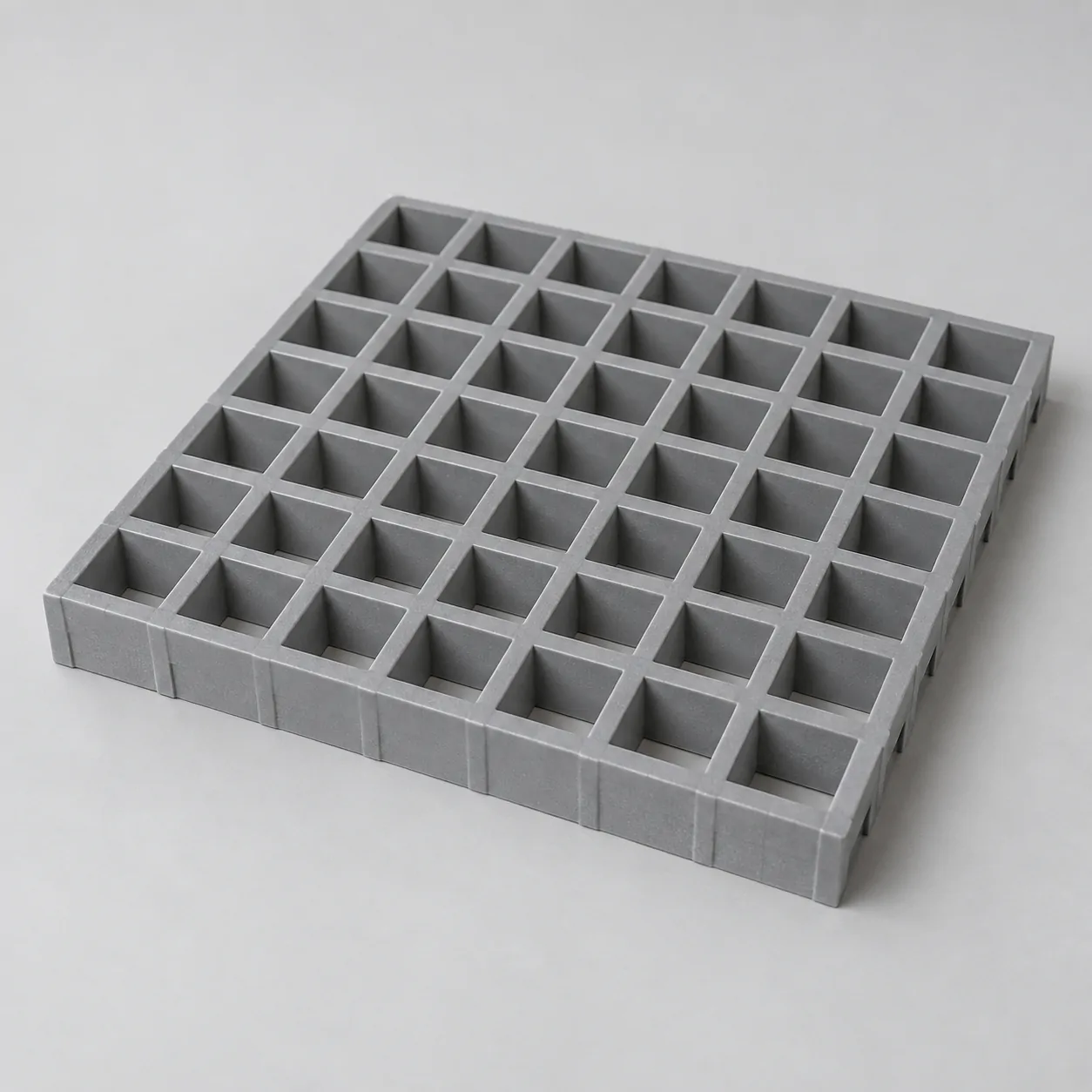

FRP grating in RAL 7004 signal grey
RAL 7004Signal Grey

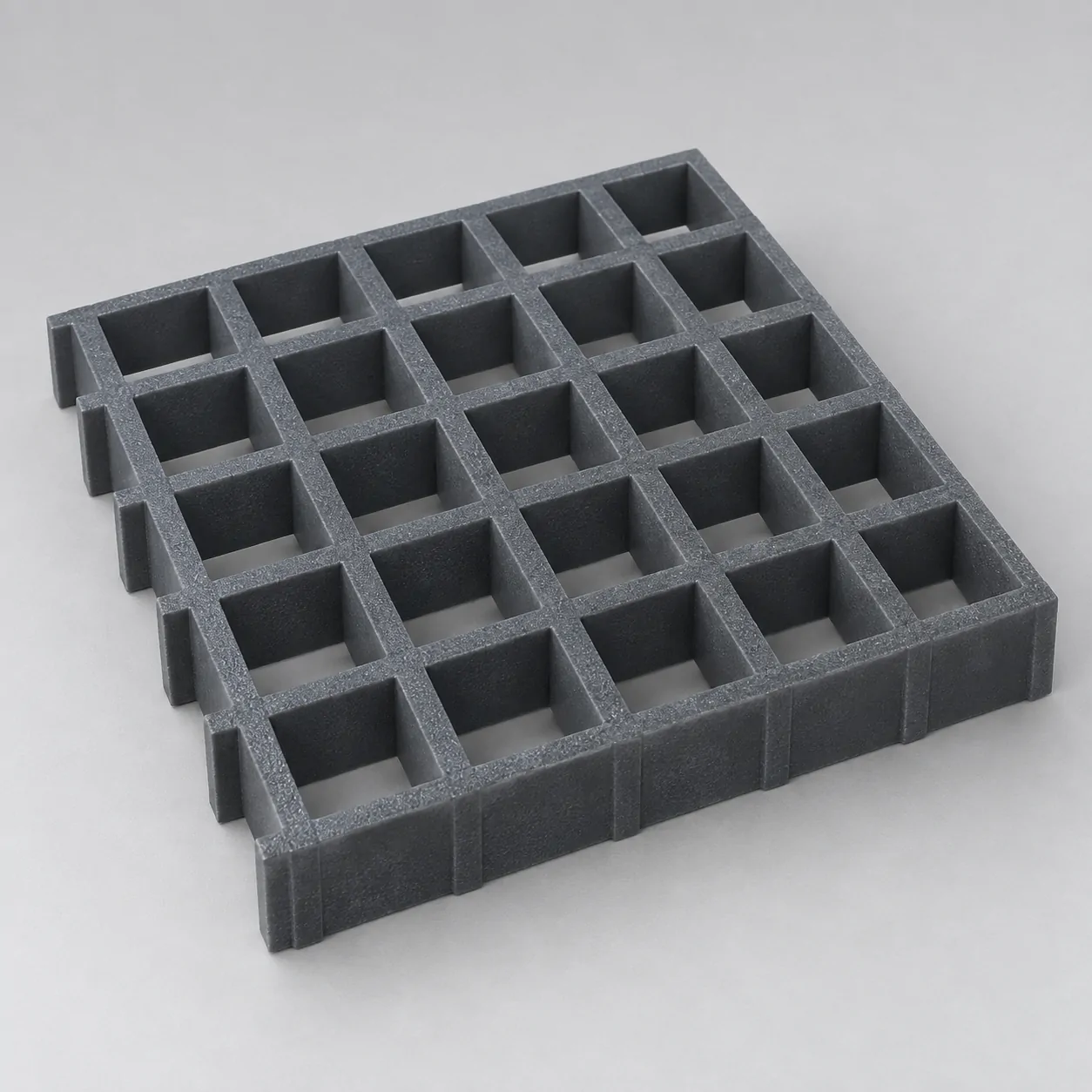

FRP grating in RAL 7015 slate grey
RAL 7015Slate Grey

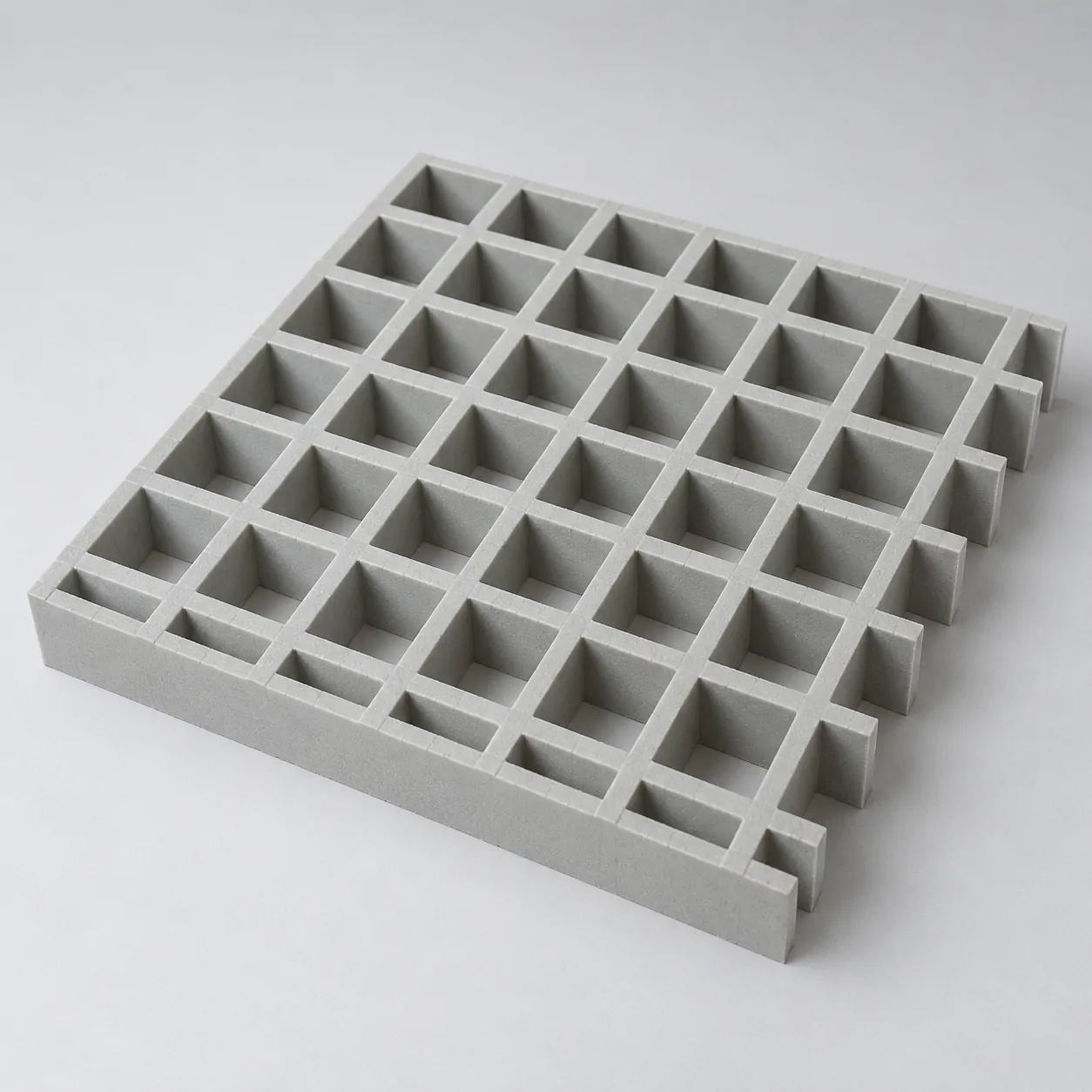

FRP grating in RAL 7035 light grey
RAL 7035Light Grey
04 / OUR FACTORY

Made in Our Own Factory in Nantong

MACHS is the brand of Nantong Mach’s Composite Material Co., Ltd., an FRP manufacturer in Nantong, Jiangsu Province, China. We produce the grating ourselves; we do not resell panels made by other factories.

  • Molded grating: one-piece panels from 13 to 60 mm thick, in square meshes from 19 × 19 to 83.3 × 83.3 mm and in rectangular meshes.
  • Pultruded grating: I-bar and T-bar models from 26 to 51 mm high, in panels up to about 12 m long.
  • Fabrication: cutting to drawing, cut-outs, edge sealing, covered (solid-top) grating and stair treads, finished in the factory before packing.
  • Testing: an in-house lab for flexural, impact, salt spray and weathering tests, with fire tests carried out by SGS.

Visit the factory: buyers are welcome to audit our production. Fly to Nantong Xingdong International Airport, or to Shanghai Hongqiao or Pudong, and we will collect you.

See the MACHS FRP laboratory and our certificates.

05 / BUYING DIRECT

Why Buy FRP Grating Directly from the Manufacturer

Buying from the factory that makes the grating gives you control over price, material and paperwork. With MACHS that means:

  • Factory pricing: no trading margin between you and the production line.
  • Material you can check: we publish the unit weight of every size, for example 19.50 kg/m² for 38 mm molded grating with 38 × 38 mm mesh, so you can see whether a quote uses less glass and resin. See our FRP grating weight table.
  • Test data, not claims: load and deflection tables from our own tests, and SGS ASTM E84 reports that name the exact sample tested. See the FRP grating load tables.
  • Both grating types from one supplier: molded grating for walkways and chemical areas, pultruded grating for longer spans, in the same order.
  • Cut to your drawing: every piece cut, numbered and labelled to your layout, ready to install.
  • Small orders welcome: trial and single-pallet orders are accepted, and stock samples are free (new moulds excluded).

Comparing suppliers? Our QC checklist for buying FRP grating from China and FRP grating price factors explain what to check in each quote.

06 / FABRICATION & ACCESSORIES

Fabrication & Accessories

We deliver grating ready to install, not just raw panels.

Fabrication services

  • Cut-to-size to your layout drawing, with each piece numbered to match the drawing
  • Cut-outs for pipes, columns and equipment, with edges resin-sealed
  • Edge banding with FRP angles or flat bars for neat, strong edges
  • Covered grating with smooth or gritted cover plates
  • Stair treads, including 38 mm rectangular-mesh stair grating (565×3050 mm)

Accessories

  • M-type and C-type clips for fixing grating to beams
  • Saddle clips for pultruded grating
  • Hold-down clips for flange connections
  • FRP support beams: I-beams, channels and angles (see FRP Profiles)
  • FRP handrail systems to complete the platform (see FRP Handrail)

See all Grating Clips & Fasteners

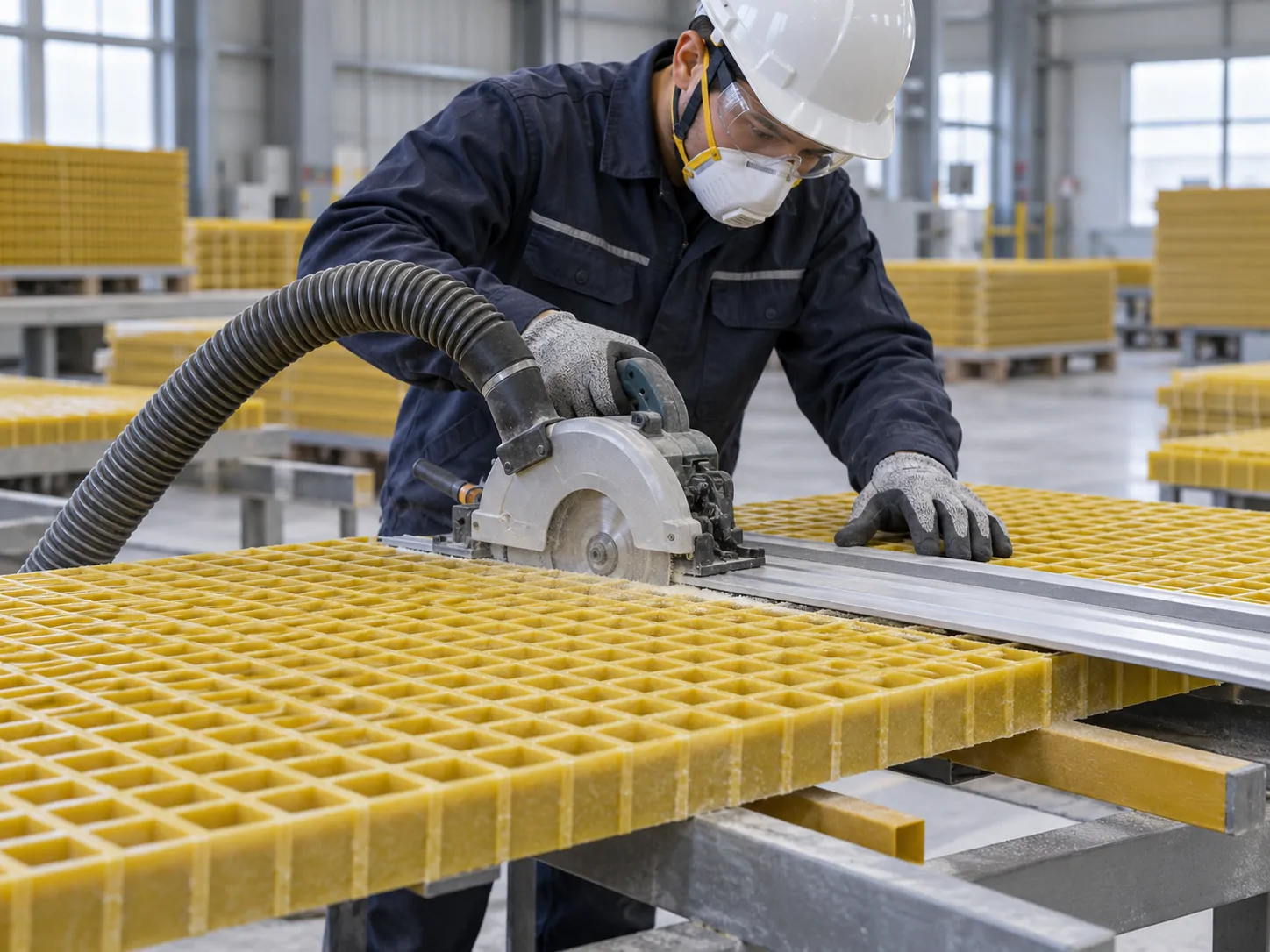

Cutting FRP grating to size in the factory

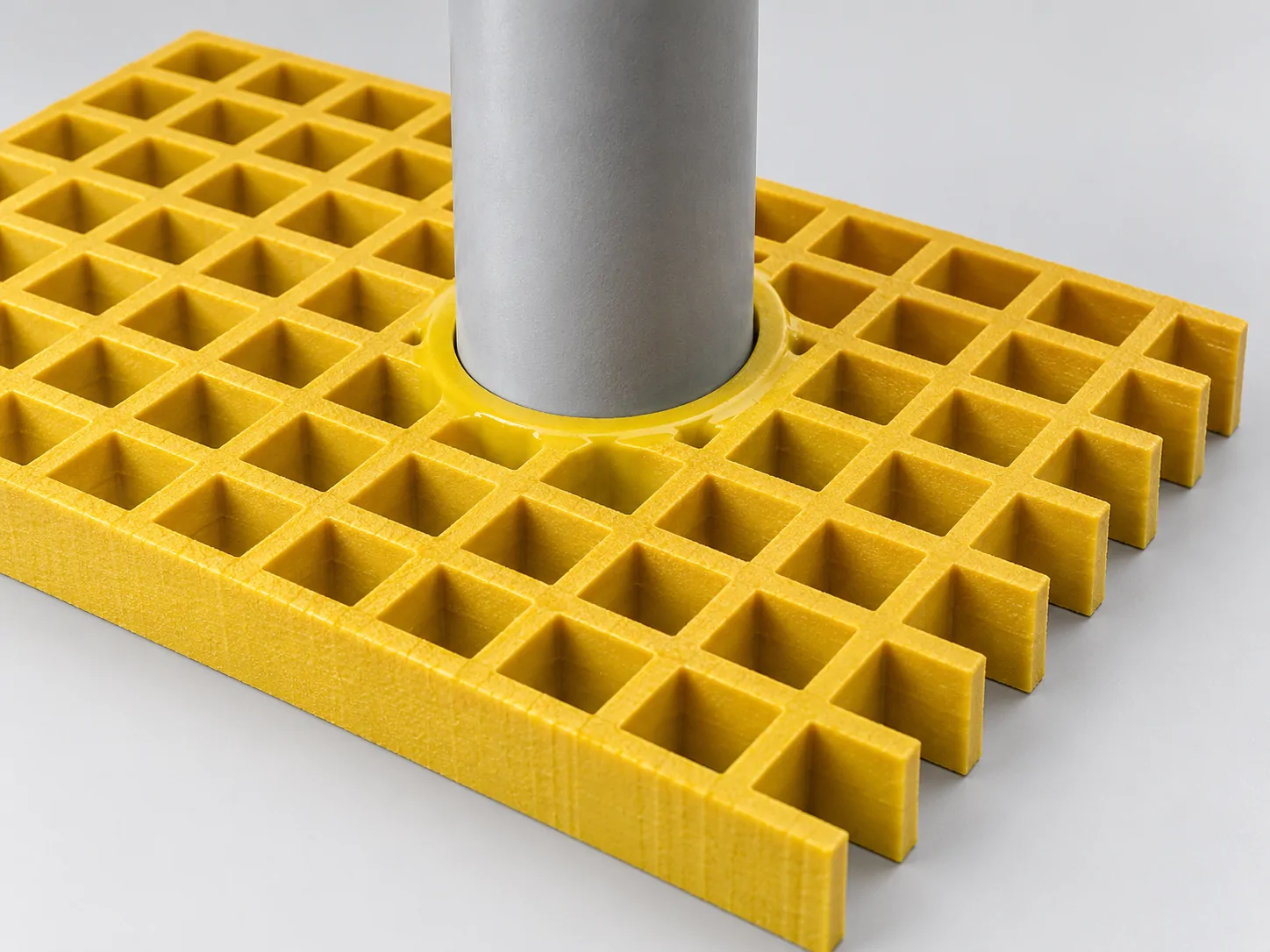

FRP grating with pipe cut-out and sealed edges

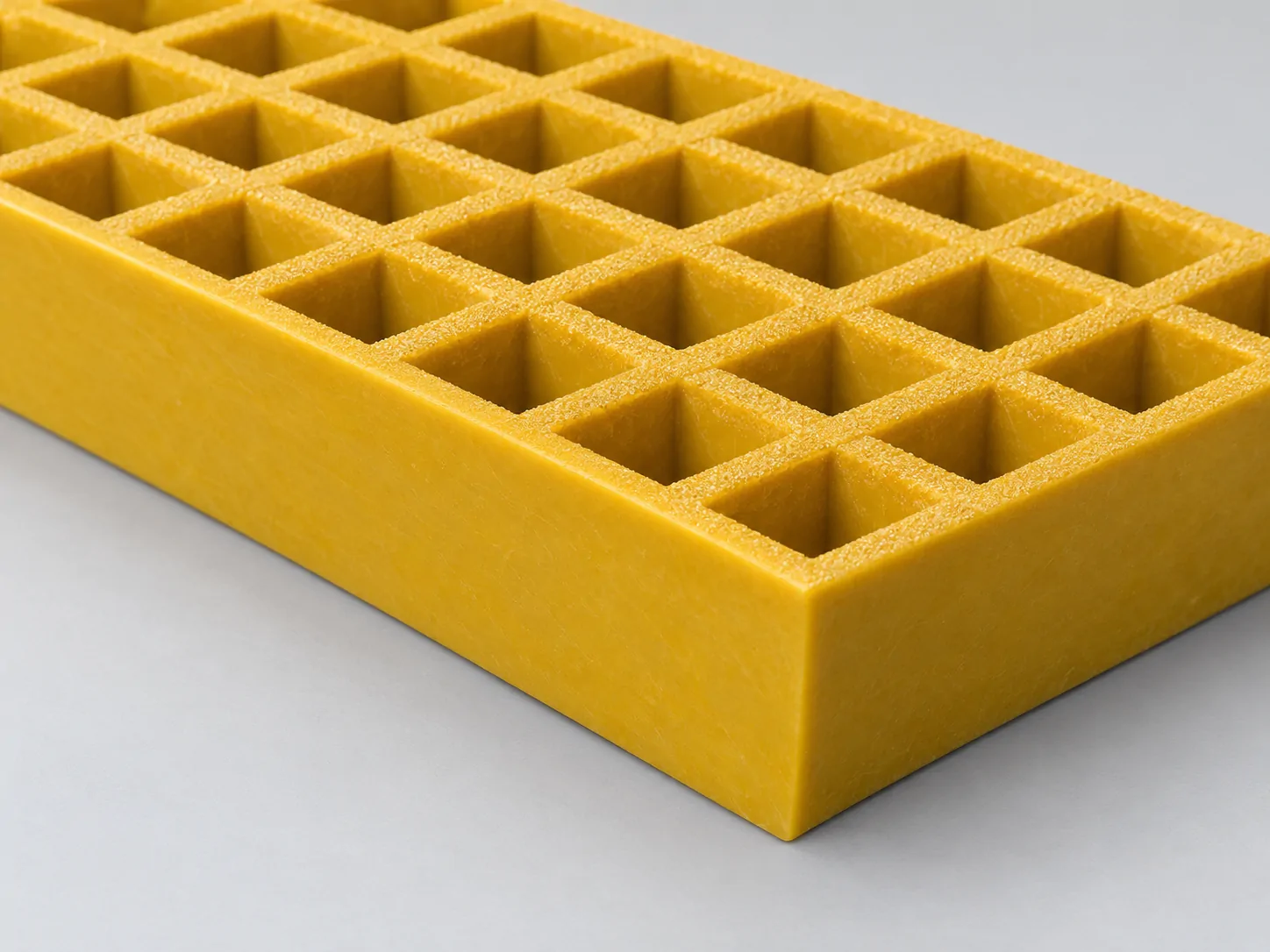

FRP grating edge banding

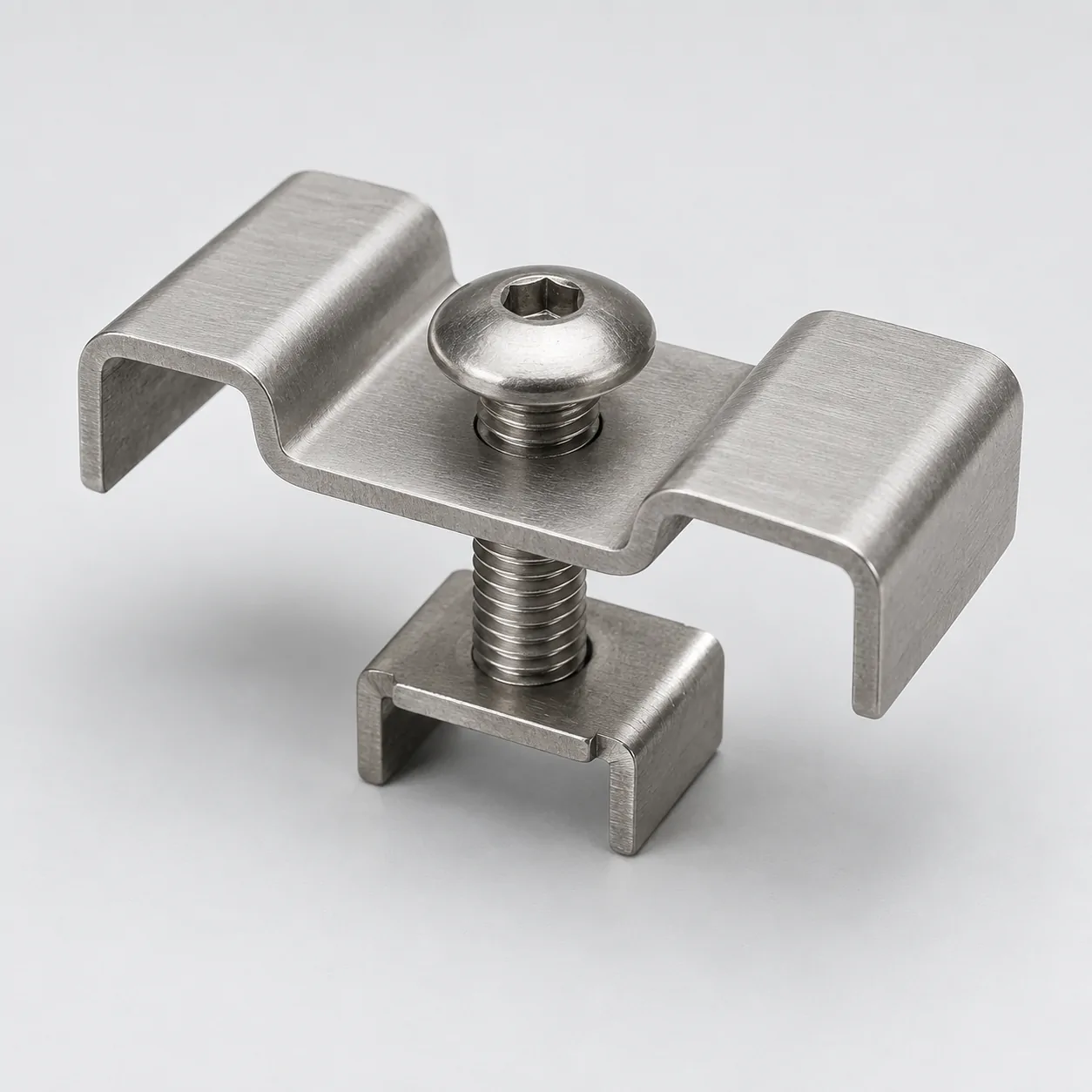

M-clip for FRP grating

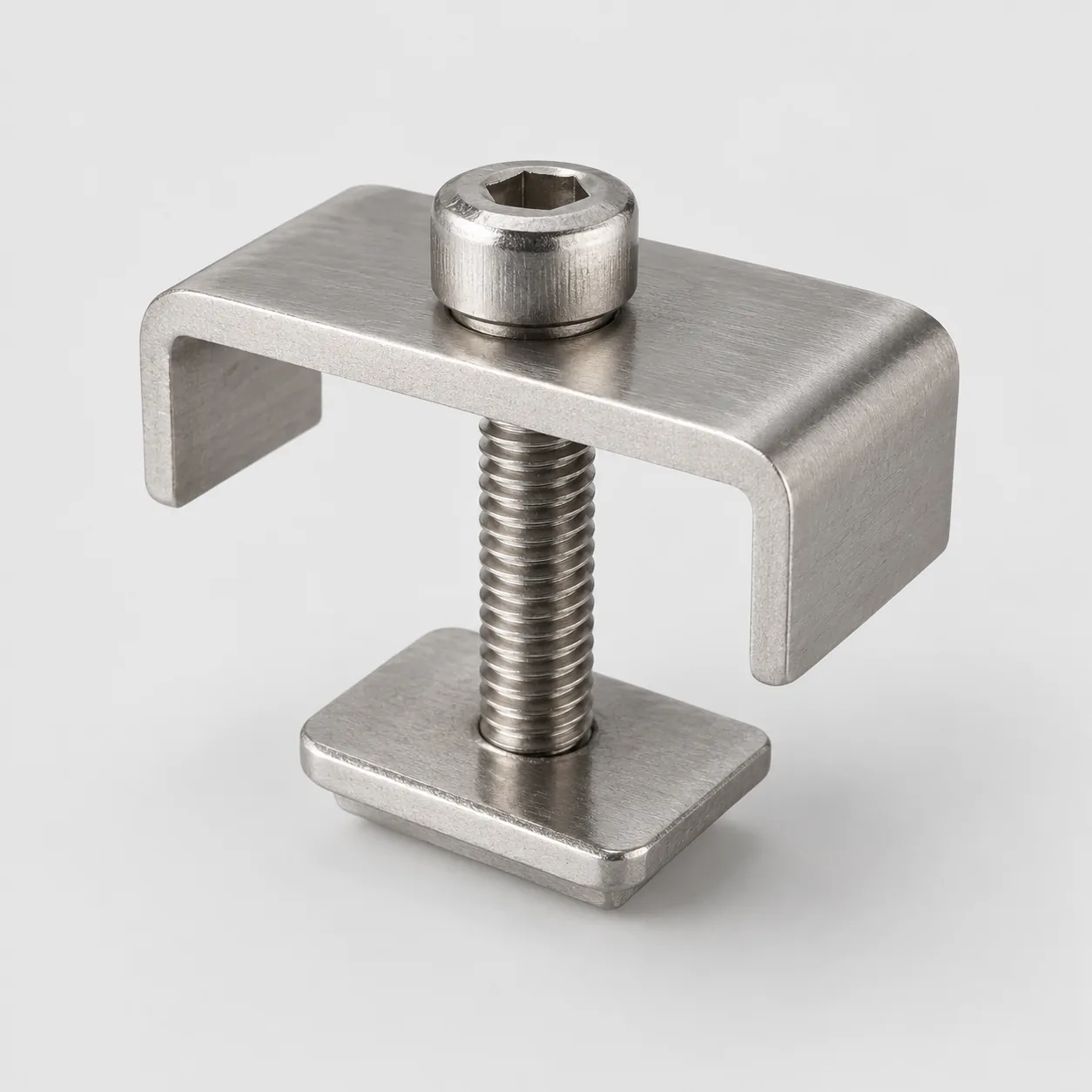

C-clip for FRP grating

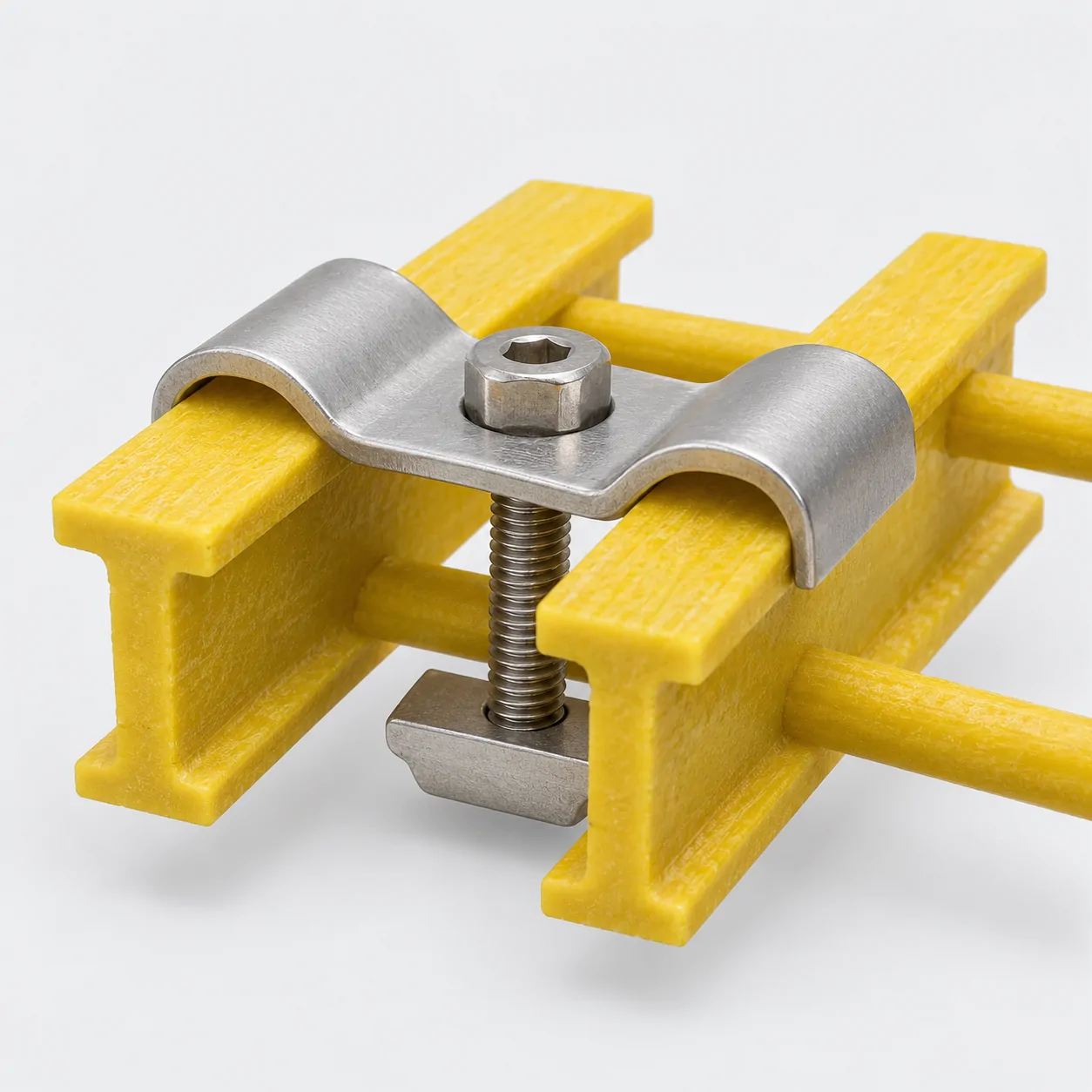

Saddle clip for pultruded FRP grating

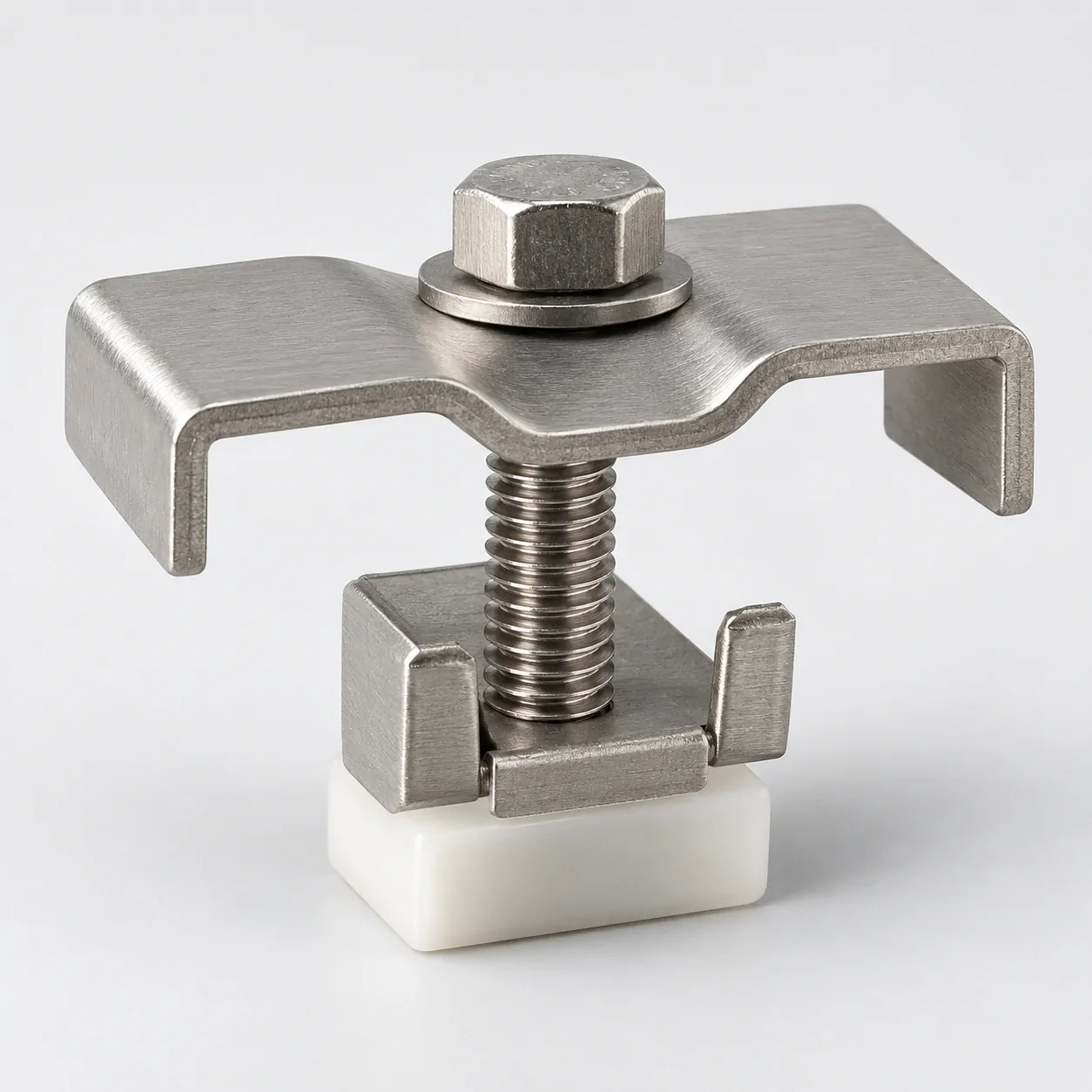

Hold-down clip for FRP grating

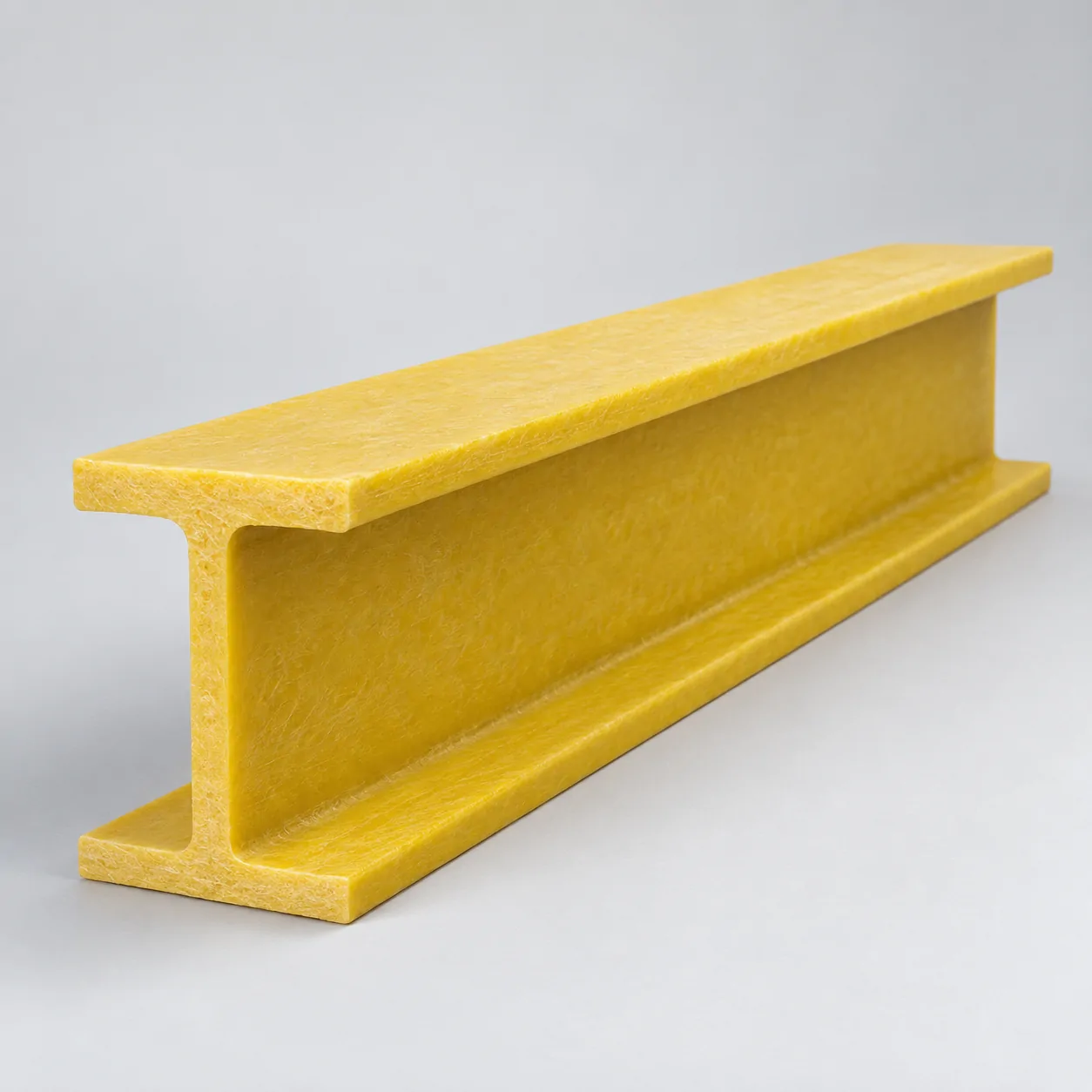

FRP I-beam support profile

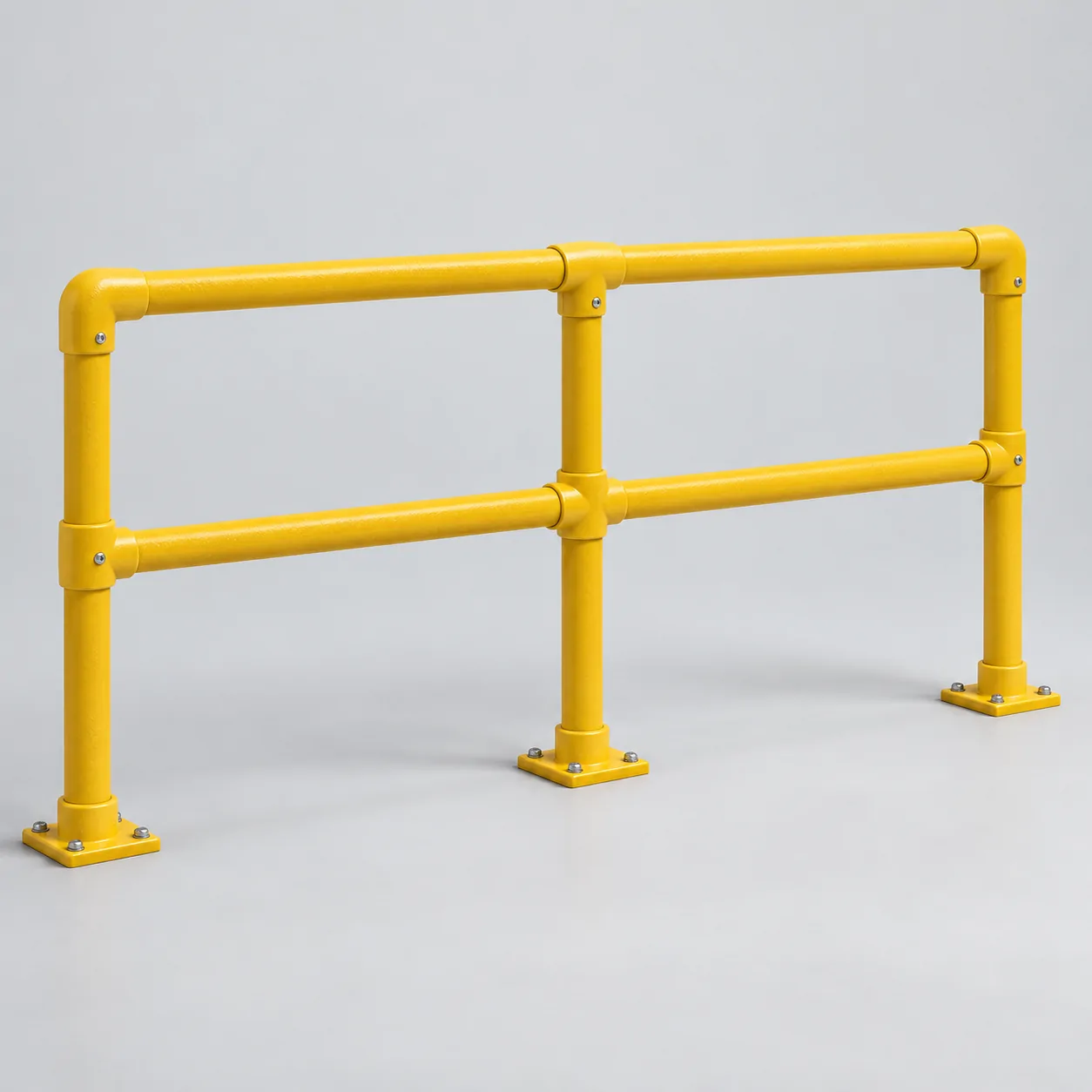

FRP handrail system
07 / QUALITY CONTROL

Quality Control & In-House Lab

MACHS quality control and in-house laboratory

Every order is checked from raw material to finished panel:

  1. Incoming inspection: glass fibre, resin and additives are checked against supplier certificates.
  2. In-process control: resin mixing and curing are controlled for each batch.
  3. Finished product inspection: dimensions, weight and appearance are checked against the order.
  4. Pre-shipment check: quantity, labelling and packing are checked against your order.

Lab equipment:

  • Flexural & tensile testing machine (ASTM D790 / D638)
  • Salt spray tester (ASTM B117)
  • QUV accelerated weathering (ASTM G154)
  • Impact tester (ASTM D256)
  • CNC vision measuring system & CMM
  • Thermal cycling & humidity chambers

Download Test Reports & Certificates

08 / FIRE TESTS & APPROVALS

Fire Test Results & Approvals

SGS ASTM E84 surface burning tests

SGS TEST RECORDMACHS / FRP GRATING
Sample testedStandardFlame spread index (FSI)Smoke developed index (SDI)ResultReport no.
Molded grating 38 mm, 38×38 mesh, grit surfaceASTM E84-241025Class ASDFTS25000938R01_EN
Molded grating 38 mm, 38×38 mesh, grit surfaceASTM E84-2410115Class ASDFTS25000940R01_EN
Molded grating 38 mm, 38×38 mesh, grit surfaceASTM E84-2410160Class ASDFTS25000933R01_EN
Molded grating 38 mm, 38×38 mesh, grit surfaceASTM E84-2415350Class ASDFTS25000936R01_EN
Pultruded grating I-6015, 38 mm, orangeASTM E84-202410200Class AAJFTS26000455R01_EN

Results apply to the samples described in each report. If your project needs a fire classification for a different thickness, resin, colour or surface, tell us and we'll confirm the applicable report or arrange testing.

Approvals & certificates

  • ABS Product Design Assessment: FRP grating
  • ABS Manufacturing Assessment
  • ISO 9001:2015 quality management (ABS)

Download Test Reports & Certificates

FRP certificate 1
FRP certificate 2
FRP certificate 3
FRP certificate 4
FRP certificate 5
FRP certificate 6
09 / PROJECT REFERENCES

Proven in the Field

PROJECT / 01

Jebel Ali Port, Dubai, UAE (2009)

Products: molded grating, handrails, stair treads, support structures

FRP replaced corroded steel platforms in one of the world's largest man-made harbours. Still in service after more than 15 years of salt spray, UV and extreme summer heat.

PROJECT / 02

Sohar Port & Freezone, Oman (2011)

Products: FRP grating, reinforced handrail system

FRP grating and handrails replaced corroded steel at an oil and chemical storage facility exposed to salt air and chemical vapour. Painting and rust treatment are no longer needed.

PROJECT / 03

Glenelg Wharf, Adelaide, Australia

Products: FRP stair and platform system

A complete FRP stair and platform system at one of South Australia's busiest public waterfronts, used by thousands of visitors every day.

10 / APPLICATIONS

Applications & Recommended Specifications

FRP grating platform in a chemical plant

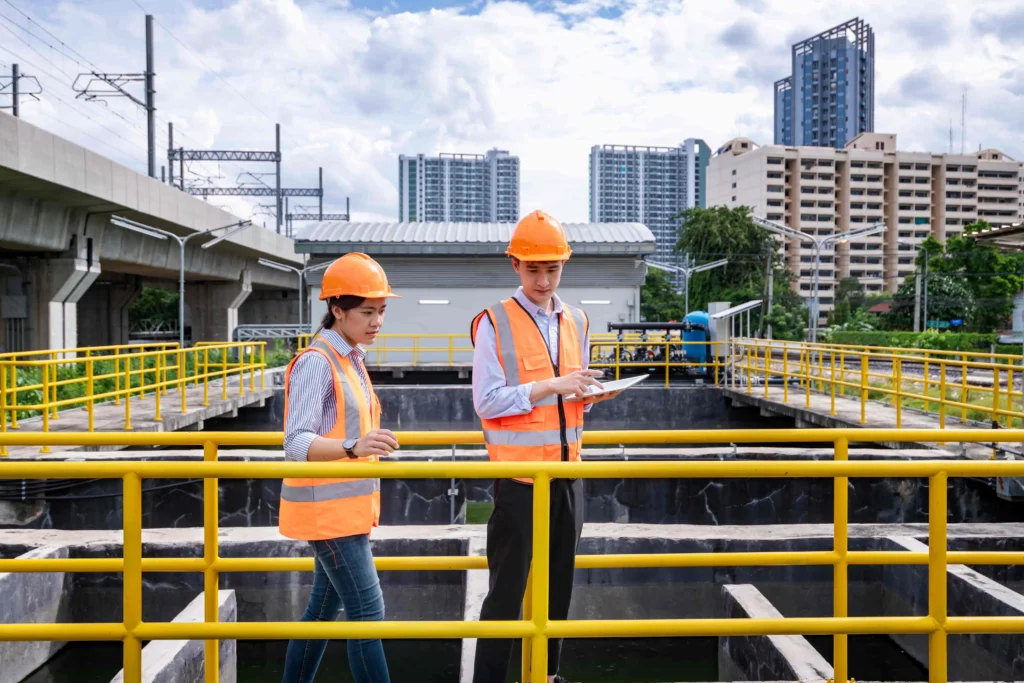

FRP grating walkway over a wastewater tank
FRP grating on a jetty
FRP grating cable trench cover in a substation
FRP grating access walkway in a mineral processing plant
FRP grating floor in a food factory
FRP grating on a cooling tower fan deck
FRP grating rooftop walkway
Application & resin recommendations
TECHNICAL REFERENCEMACHS / FRP GRATING
IndustryTypical useSuggested gratingSuggested resin
Chemical & petrochemicalWalkways, platforms, bund floorsMolded 38 mm, 38×38, grit topVCF vinyl ester
Water & wastewaterTank covers, channels, laundersMolded 38 mm or mini meshIIF isophthalic
Offshore & marineDecks, jetties, pontoonsPultruded I- or T-bar; phenolic molded gratingPIN phenolic or VCF vinyl ester
Power & utilitiesPlatforms near electrical equipment, cable trenchesMolded 38 mm, open or coveredIIF isophthalic
Mining & mineralsProcess plant access, wash baysMolded 38–50 mm, grit topVCF vinyl ester
Food & beverageProcessing floors, drainsMolded mini meshIFF food-grade isophthalic system
Cooling towersFill support, fan deck walkwaysMolded 38 mmIIF isophthalic
Building & rooftopsRoof walkways, maintenance accessMolded 25–30 mmOAG orthophthalic
11 / BEFORE ORDERING

What Buyers Ask Before Ordering FRP Grating

"Will it carry my load?"

We publish deflection data for our grating (see the load tables above) and can provide full load tables for each model. Tell us the span, load type and deflection limit, and our engineers will recommend the right depth and mesh.

"Is it really slip-resistant when wet or oily?"

For wet, oily and outdoor areas we recommend a grit-top surface. Covered grating with a gritted plate is available where a closed floor is needed.

"Can I trust a Chinese supplier on quality?"

We are the manufacturer, not a trading company. Our grating holds an ABS Product Design Assessment, our factory holds an ABS Manufacturing Assessment, and our fire performance is tested by SGS. Third-party inspection before shipment is welcome.

"Will the panels match my drawing?"

Every order is cut to your drawing and checked before packing. Each piece is labelled with its drawing number so your installers know where it goes.

"How will it arrive?"

Panels are stacked flat, wrapped in corrugated board and secured with steel strapping. Every shipment includes the packing list, commercial invoice, certificate of origin and the test reports you need.

"What's the lead time?"

Lead time depends on resin, size, colour, surface and quantity. We confirm stock availability and lead time in writing with every quotation. Rush production can be discussed for urgent projects.

12 / PACKING & SHIPPING

Packing & Shipping

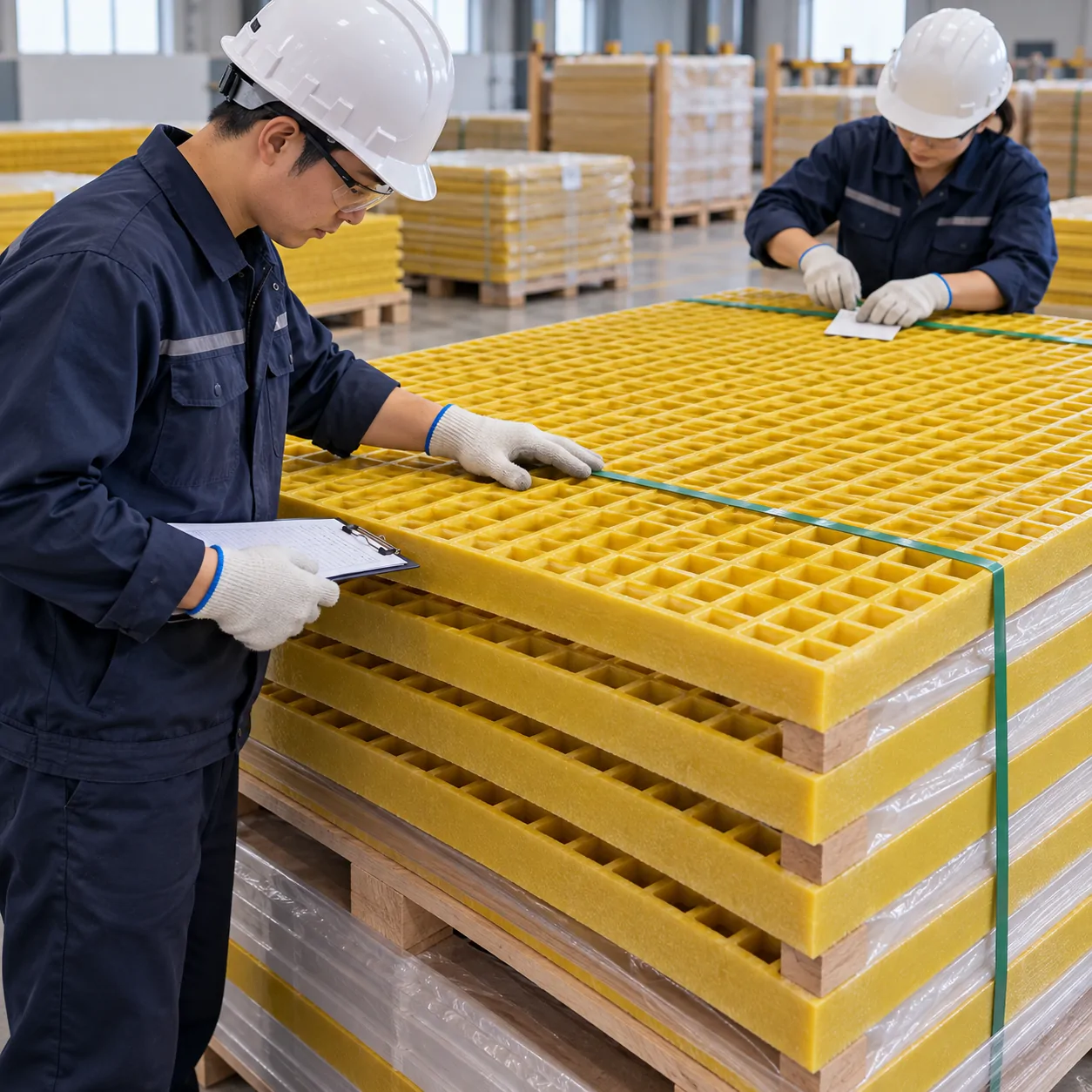

Inspecting and labelling FRP grating before packing

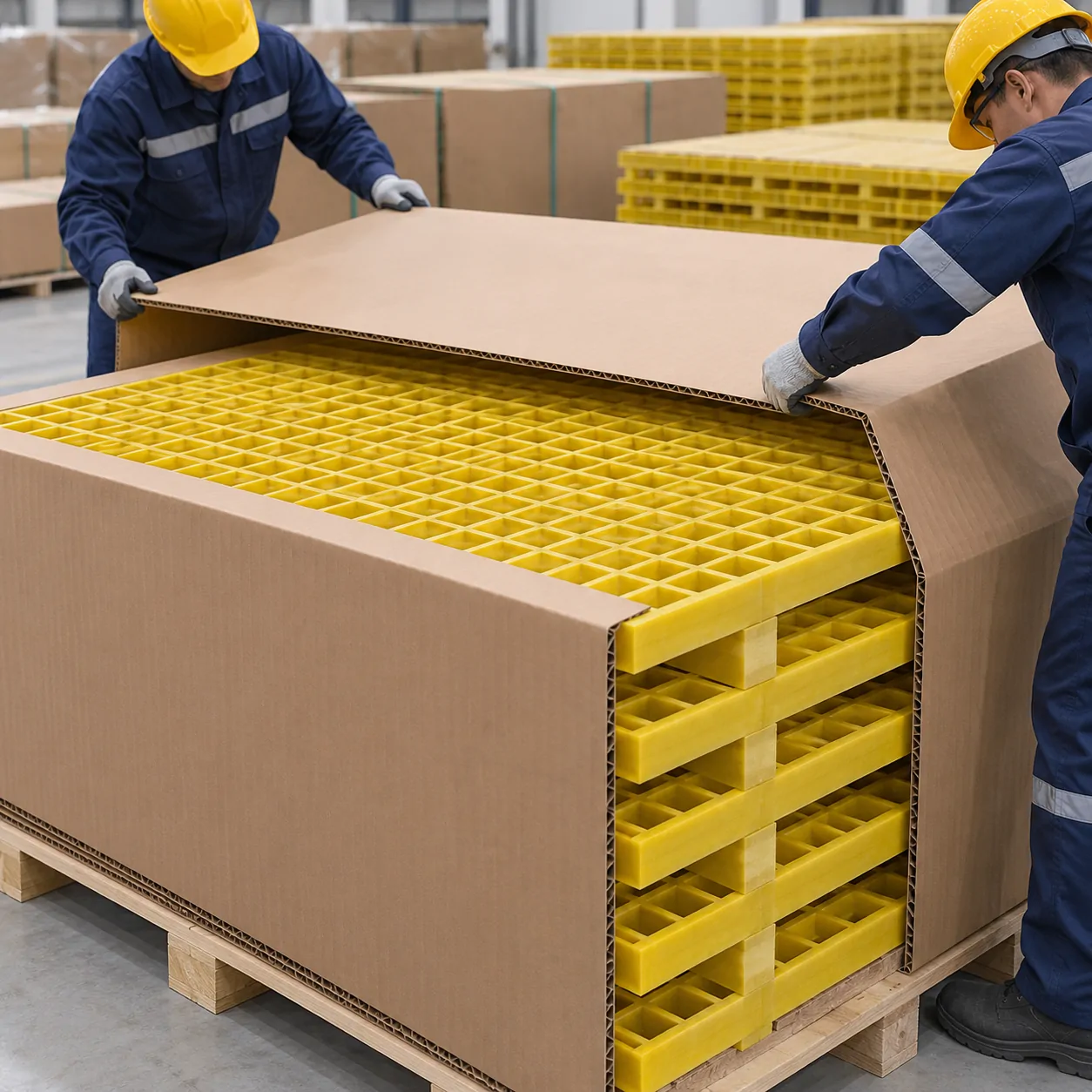

FRP grating wrapped in corrugated board

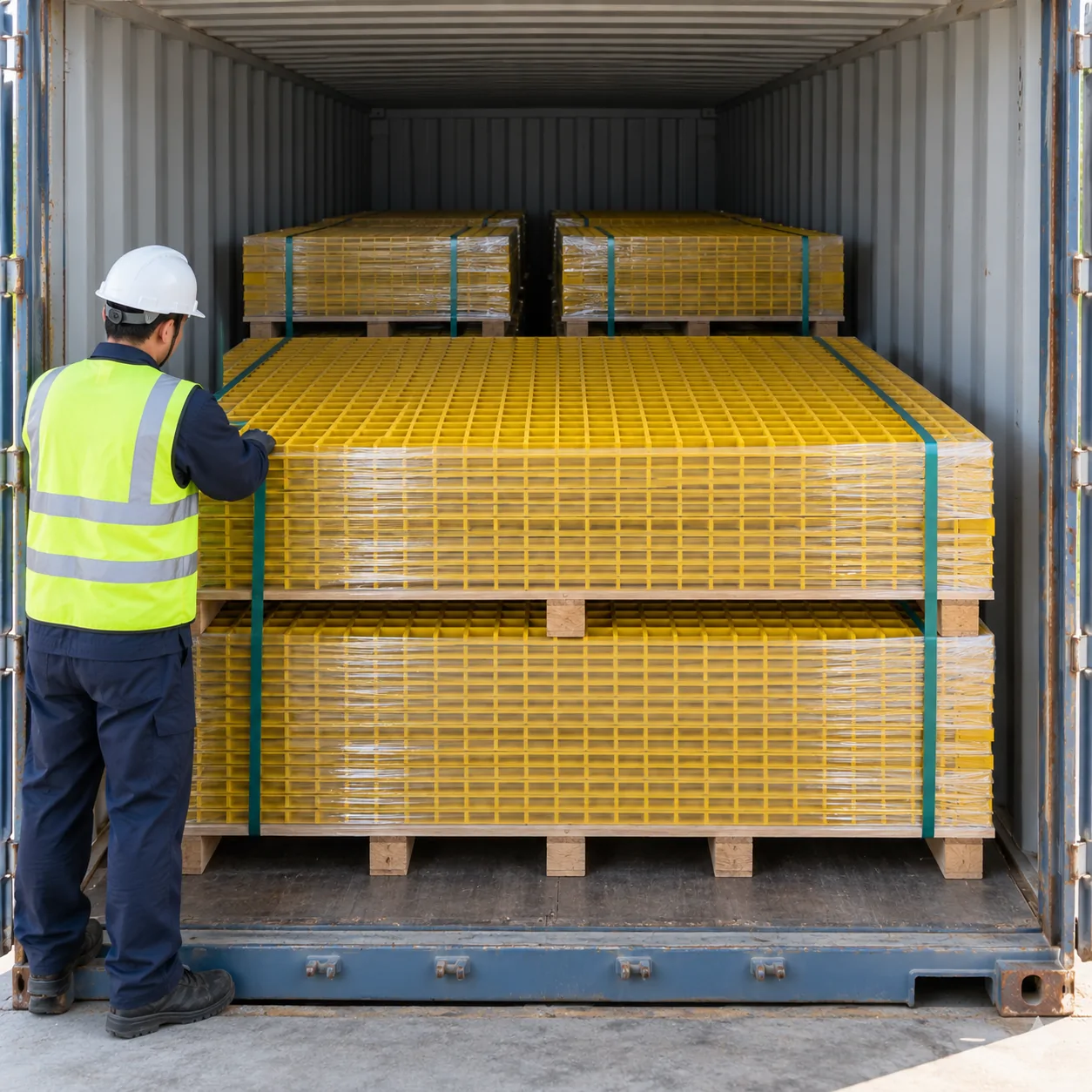

Packed FRP grating loaded in a shipping container
FRP grating packing and shipping
  1. Final check: every panel is inspected and labelled before packing.
  2. Stacking: panels are laid flat, layer by layer.
  3. Wrapping: each stack is wrapped in corrugated board.
  4. Securing: stacks are fixed with steel strapping on pallets or in crates.
TECHNICAL REFERENCEMACHS / FRP GRATING
Trade termsFOB, FCA, CIF, DDP
DocumentsCommercial invoice, packing list, B/L, certificate of origin, test reports
13 / PROJECT WORKFLOW

From Drawing to Delivery

  1. Send your drawing or requirements: CAD, PDF or a sketch with dimensions and loads.
  2. Get a quote and recommendation within 24 hours, with confirmed availability and lead time.
  3. Production & inspection: in-house quality checks. Third-party inspection is welcome.
  4. Export packing & delivery: FOB, CIF or DDP to your site.

Samples: stock samples are free (new moulds excluded). Custom samples are charged, and the fee is refunded when your order reaches the MOQ.

Small orders welcome: we accept very small and trial orders.

14 / TECHNICAL RESOURCES

Technical Guides: Load Tables, Resins, Fire and Installation

Engineering and buying guides written from MACHS test data: load tables, weights, resin selection, fire tests and project experience.

15 / FREQUENTLY ASKED QUESTIONS

Questions Buyers Ask an FRP Grating Manufacturer

Are you a manufacturer or a trading company?

We are the manufacturer. MACHS grating is molded and pultruded in our own factory in Nantong, Jiangsu, China, and cut and packed there before shipment.

Can we visit or audit your factory?

Yes. Buyers and inspection companies are welcome. Fly to Nantong Xingdong International Airport, or to Shanghai Hongqiao or Pudong, and we will collect you. Third-party inspection before shipment is also welcome.

Do you provide samples?

Stock samples are free (new moulds excluded). Custom samples are charged, and the sample fee is refunded when your order reaches the MOQ.

What is your minimum order quantity?

We accept very small orders, including trial and single-pallet orders.

What are your payment and trade terms?

30% deposit and 70% before shipment by T/T. We also accept L/C, and quote FOB, FCA, CIF or DDP.

What is your lead time?

It depends on resin, size, colour, surface and quantity. We confirm stock availability and lead time in writing with every quotation.

Which documents come with an order?

Commercial invoice, packing list, bill of lading, certificate of origin, and the test reports your project needs.

Can you make grating to our drawing or specification?

Yes. We cut, number and label every piece to your layout, including cut-outs for pipes and columns, and can supply standard RAL colours or match other colours on larger orders.

Which certificates and test reports do you have?

ABS Product Design Assessment for FRP grating, ABS Manufacturing Assessment, and ISO 9001:2015. Our SGS ASTM E84 tests gave Class A results on 38 mm molded grit-top grating and 38 mm I-6015 pultruded grating.

Is FRP grating the same as GRP or fiberglass grating?

Yes. The three names describe the same glass-fibre product. See FRP vs GRP grating.

How do I choose the right thickness?

Thickness is chosen by span, load and deflection limit. Our 6-step selection method and load tables show which grating suits your span.

滚动至顶部

Let’s Start Custom Your FRP Product!

WhatsApp
Send A Email

Please fill in the information, and we will send the file to your email
