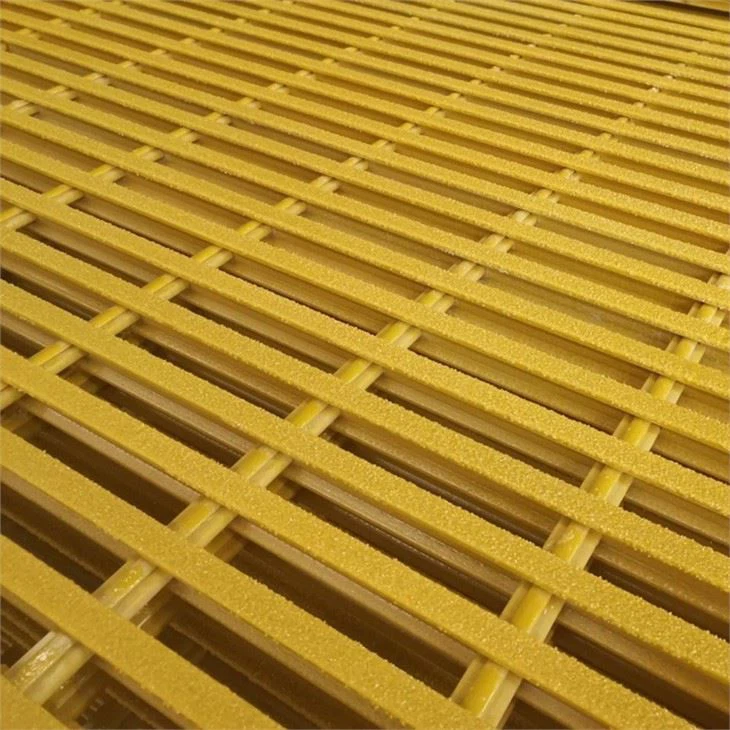

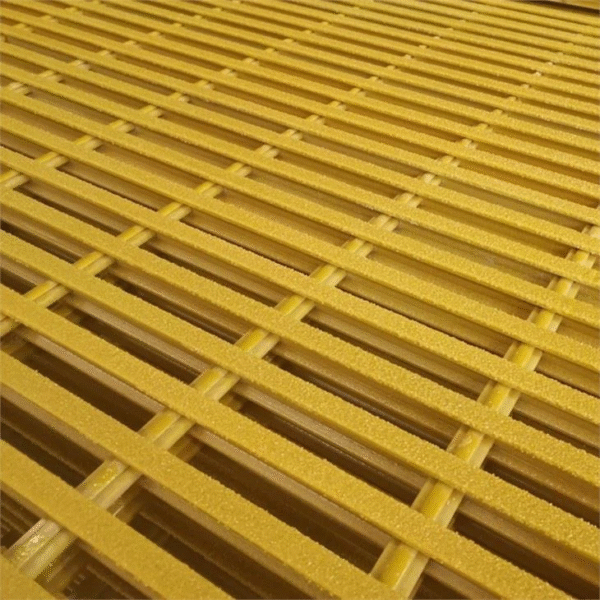

Pedestrian Pultruded Grating

Pedestrian pultruded grating is specifically designed for pedestrian foot traffic. Many of them are ADA Compliant
✔ Factory Direct Sales.
✔ Accept Customized Services.
✔ ISO14001, ISO9001, ABS Certificated.

Customizable Options – Tailored size, resin type, and surface finish to meet your project needs.
Factory-Direct Pricing – Save costs with direct production from our source factory.
Free Sample Design – Get a sample or design validation before bulk production.
Global Quality Supply – Reliable quality and on-time delivery worldwide.

All kinds of weather conditions and foot traffic will cause corrosion and physical wear to walkways made of traditional materials, leaving dangerous slippery surfaces. Slip resistance is important to keep pedestrians safe. With excellent corrosion and slip resistance, pedestrian pultruded grating is the preferred alternative to these traditional products, and is durable enough to respond to all kinds of harsh conditions.

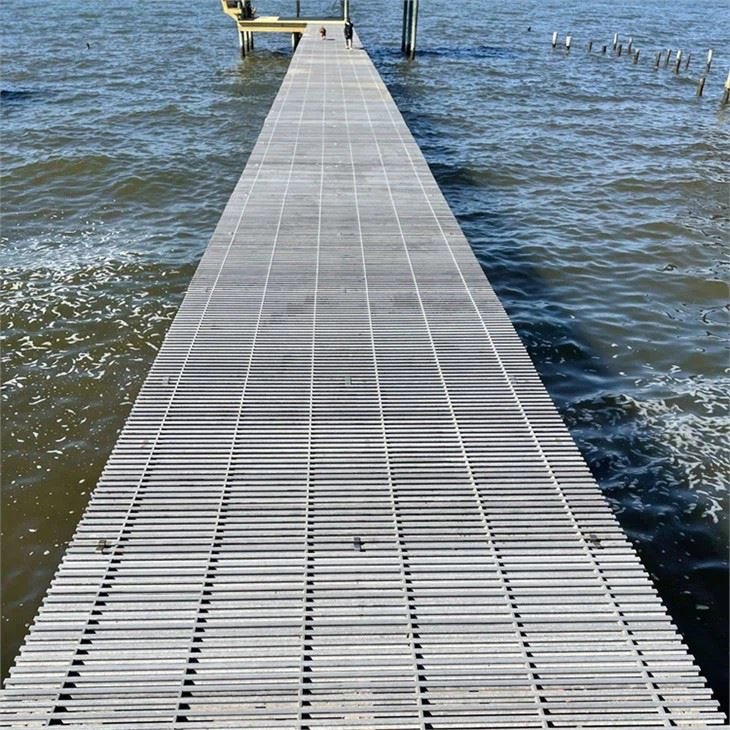

Compared with FRP molded grating, the superior unidirectional strength of pedestrian frp pultruded grating makes it more suitable for applications that the user needs to span great distances whilst still retaining a lightweight and easy to fabricate, such as walkways, pedestrian ramps, decks and patios.

In the long run, it is a cost-effective solution for the user to install our pedestrian pultruded grating, which saves a lot of labor, equipment and on-site installation.

Raw Material	Resin + E-Glass + Filler (ATH)
Resin System	ORTHO, ISO, VE, PHENOLIC
Color	Custom
Dimension	See the Form Below or Custom
Application	Specifically Designed for Pedestrian Foot Traffic, Such as Walkways, Pedestrian Ramps, Decks, etc
Certification	ISO14001, ISO9001, ABS, etc.

Unit: mm
Model	Number of Bars	Grating Height	Open Area	Load Bar Width (top/bottom)	Load Bar Centers	Cross Bar Spacing
T10-18 (ADA)	6	25	18%	41.3/15	50	152
T10-33 (ADA)	8	25	33%	25/9.6	38	152
T10-35	5	25	35%	41.3/15	64	152
T10-50	6	25	50%	25/9.6	50	152
T15-17 (ADA)	10	38	17%	25/9.6	30	152
T15-33 (ADA)	8	38	33%	25/9.6	38	152
T15-50	6	38	50%	25/9.6	50	152

Custom product. Color, pannel size, resin and other specifications can be customized upon your request.

Factory price. We only manufacture highest quality products at the lowest price. Call to order now!

Q1: How do you ensure the quality of FRP products?

A: All products are manufactured in our own factory under strict ISO-based quality control. We perform raw material testing, process monitoring, and final inspection to ensure every panel meets strength, durability, and corrosion-resistance requirements.

Q2: Where can FRP products be used?

FRP products are ideal for chemical plants, wastewater facilities, offshore platforms, walkways, platforms, stairs, and other areas that require corrosion resistance, lightweight structure, and long service life.

Q3: Do you provide after-sales support?

Yes. We provide clear documentation, installation guidelines (if needed), and technical support. If any quality issue is confirmed after delivery, we offer replacement, rework, or other agreed solutions.

Q4: Can you help with project-specific requirements?

Absolutely. Our team can suggest the right resin system, grating type, and surface finish for your application, and provide drawings or design assistance to ensure project success.
