Heavy Duty Fiberglass Grating

Heavy duty fiberglass grating is specified in building the structure as a preferred solution over traditional materials due to its high load capabilities.
✔️ Withstand the Load of Transport Trailer (H-20).
✔️ Factory Direct Sales.
✔️ Custom and High Visibility Color Options.

Customizable Options – Tailored size, resin type, and surface finish to meet your project needs.
Factory-Direct Pricing – Save costs with direct production from our source factory.
Free Sample Design – Get a sample or design validation before bulk production.
Global Quality Supply – Reliable quality and on-time delivery worldwide.

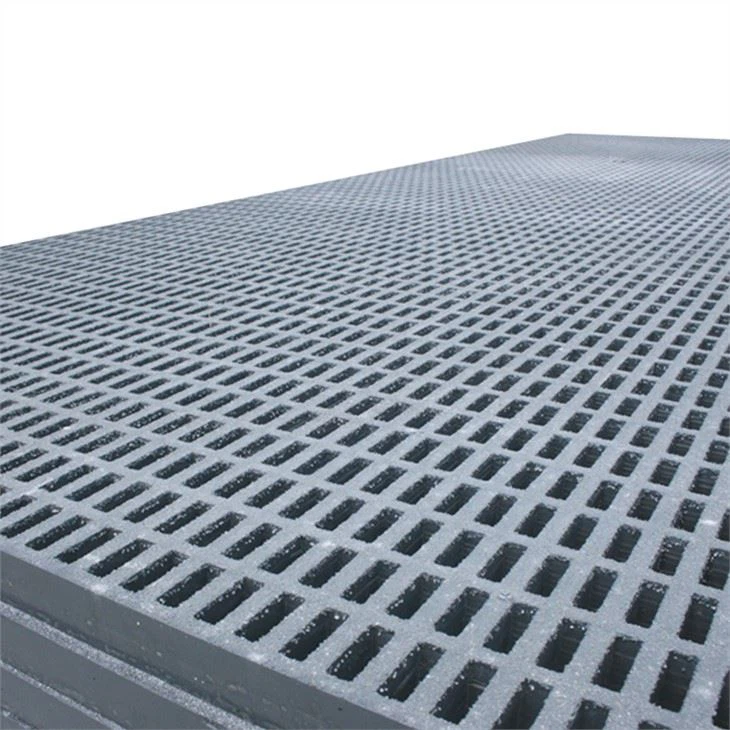

Whether it’s a private residence, commercial carwash, or industrial facility heavy duty (HD) fiberglass grating has become the most suitable primary structural material due to the superior load capacity, impact resistance and excellent corrosion resistance in harsh environments. Mach’s heavy duty fiberglass grating is strong enough to withstand vehicular loads in a wide array of industries. It can load from transport trucks (H-20) and forklifts and will never warp/rust/corrode and become unsafe, which provides the most durable and lowest maintenance solution in harsh environments!

Our HD fiberglass grating is available in molded and pultruded options to suit all kinds of applications, for example, our heavy duty square mesh is also ideally used as the floor for adult cattle. No more safety hazards and high maintenance costs caused by warped steel gratings, please feel free to consider our heavy duty fiberglass grating!

Raw Material	Resin + E-Glass + Aluminum Hydroxide
Resin	ORTHO, ISO, VE, etc.
Color	Custom
Surface	Custom
Technical Specification	See the Form Below or Custom
Certification	ISO14001, ISO9001, ABS, etc.

Unit: mm

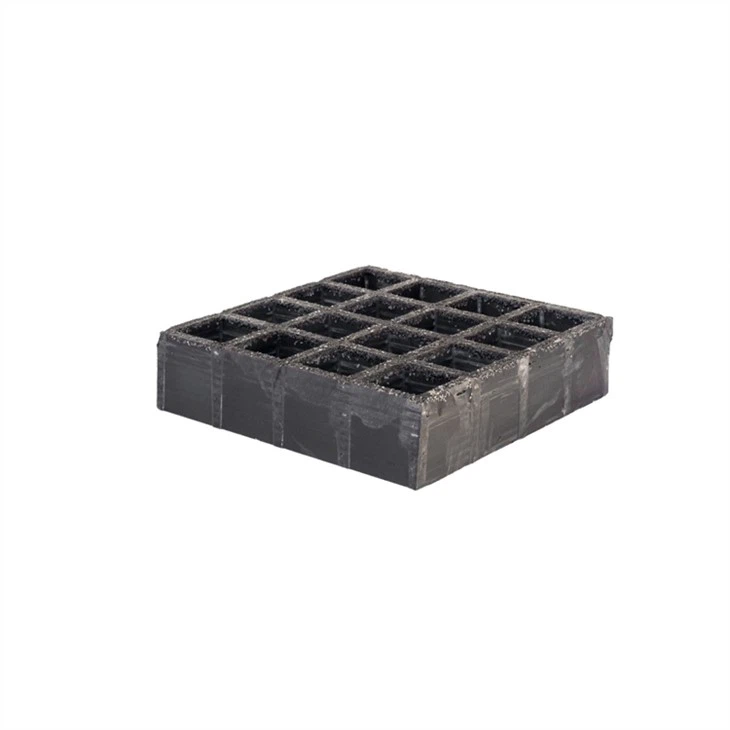

Technical Specification – HD Molded Fiberglass Grating

Grating Depth	Mesh Size	Load Bar Width		Maximum Panel Size	Open Area (%)	Approx. Weight(kg/m2)
Grating Depth	Mesh Size	Top	Bottom	Maximum Panel Size	Open Area (%)	Approx. Weight(kg/m2)

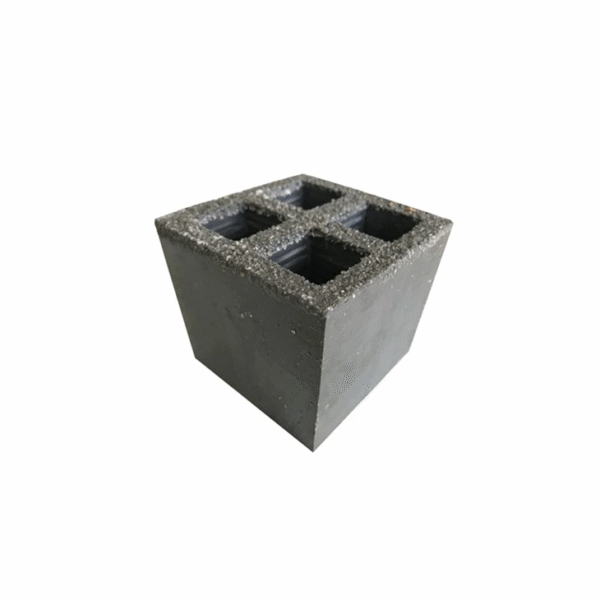

30	SM 38×38	10.5	9.0	1220×3660	58	25.00
35	SM 38×38	10.5	9.0	1220×3660	56	29.40
50	SM 38×38	11.0	9.0	1220×4000	56	42.00
60	SM 38×38	11.5	9.0	1220×4000	54	50.40

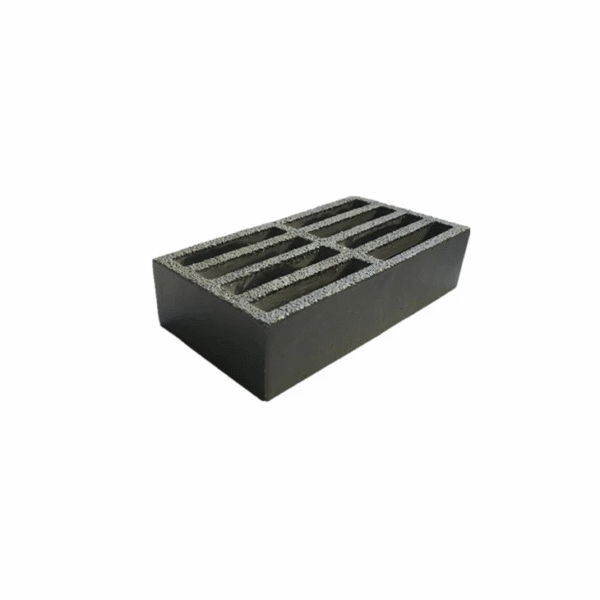

38	RM 25×50	11.0	9.0	1220×3660	48	30.30
50	RM 25×50	12.0	9.0	1220×3660	48	41.00
25	RM 25×100	9.5	8.0	1220×3660	52	19.50

Unit: mm

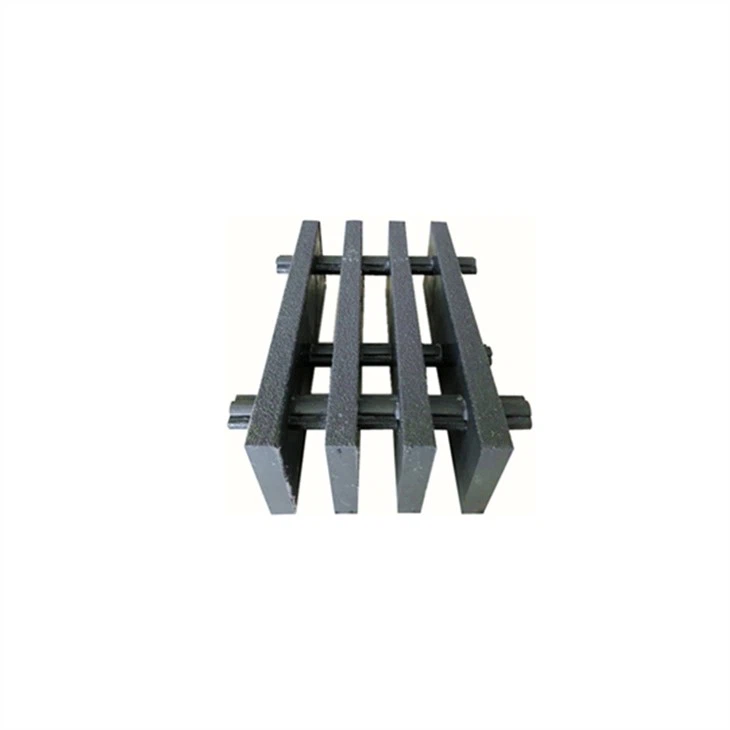

Technical Specification – HD Pultruded Fiberglass Grating

Item	Grating Depth	Load Bar Width		Load Bar Centers	Open Area (%)
Item	Grating Depth	Top	Bottom	Load Bar Centers	Open Area (%)
HL-4020	50	15	15	25	40
HL-5020	50	15	15	30	50
HL-6020	50	15	15	38	60

Custom products, we are able to manufacture all kinds of heavy duty fiberglass grating as you required!

Q1: How do you ensure the quality of FRP products?

A: All products are manufactured in our own factory under strict ISO-based quality control. We perform raw material testing, process monitoring, and final inspection to ensure every panel meets strength, durability, and corrosion-resistance requirements.

Q2: Where can FRP products be used?

FRP products are ideal for chemical plants, wastewater facilities, offshore platforms, walkways, platforms, stairs, and other areas that require corrosion resistance, lightweight structure, and long service life.

Q3: Do you provide after-sales support?

Yes. We provide clear documentation, installation guidelines (if needed), and technical support. If any quality issue is confirmed after delivery, we offer replacement, rework, or other agreed solutions.

Q4: Can you help with project-specific requirements?

Absolutely. Our team can suggest the right resin system, grating type, and surface finish for your application, and provide drawings or design assistance to ensure project success.
