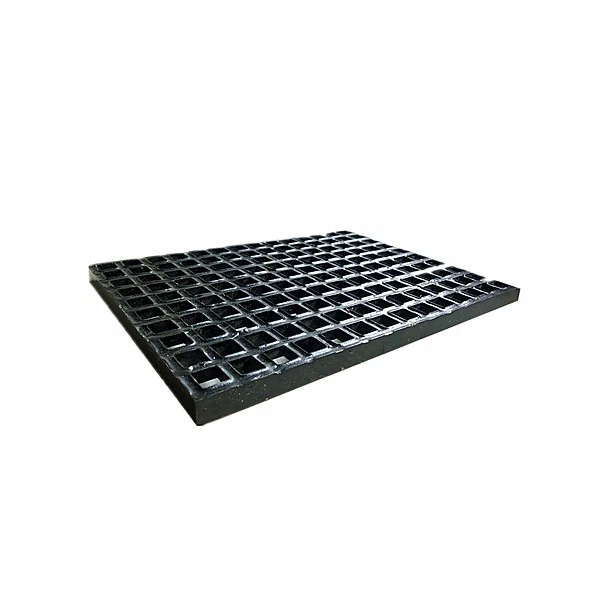

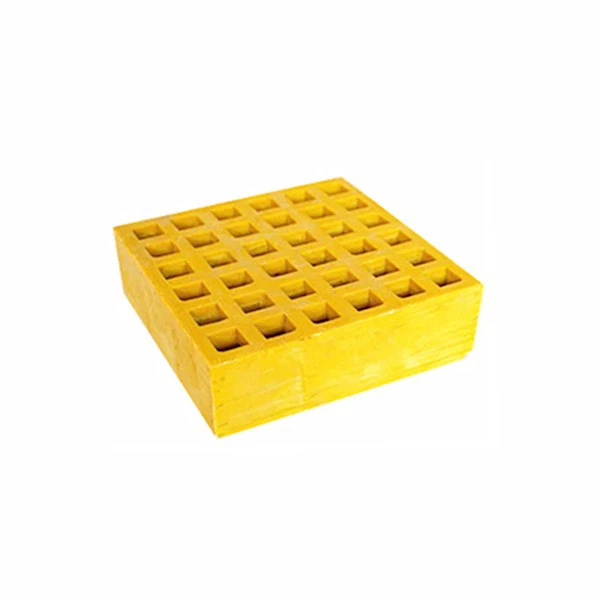

GRP Mini Mesh Grating

GRP mini mesh grating is mainly designed to cope with the need for penetration and filtration.
Accept Customized GRP Gratings
A Choice of RAL Colors Available

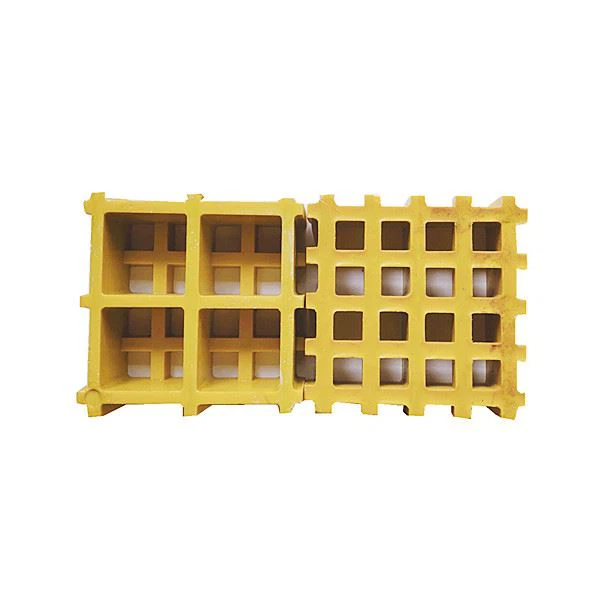

GRP mini mesh grating is made with a special mold and process to cut the aperture of the grating in half on another side of the ordinary grating. This creates double-layer grating, one side with normal mesh size and another side with half of the normal mesh size. So the load-bearing capacity of it is increased, and the resistance to pressure and tension are also enhanced. Compared with ordinary molded grating, the production process of GRP mini mesh grating is more complex, and the price is higher.
Double-layer GRP mini mesh grating is generally used in car washes to meet the special requirements of customers. Due to the reduction of the opening area, it is very ideal for greater foot coverage(eliminating foot fatigue), high heel shoe traffic, wheelchairs, carts, and hand trucks, which can effectively reduce vibration. In addition, it is also common in sewage treatment plants.

Unit: mm

Grating Thickness	Mesh Size	Load Bar Width(top/bottom)	Available Panel Size	Force Direction	Open Area	Weight
14	20×20/40×40	7.0/5.0	1247×4047, 1007×3007	Bidirectional Loading	42%	10.50kg/m2
25	19×19/38×38	6.5/5.0	1220×4000, 1220×3660, 1220×2440, 915×3050	Bidirectional Loading	40%	16.80kg/m2
30	20×20/40×40	7.0/5.0	1007×4047, 1007×3007	Bidirectional Loading	42%	18.00kg/m2
38	19×19/38×38	7.0/5.0	1524×4000, 1220×3660, 1220×2440, 915×3050	Bidirectional Loading	40%	23.50kg/m2
38	26×26/52×52	6.0/5.0	1150×4011	Bidirectional Loading	60%	19.50kg/m2
40	20×20/40×40	7.0/5.0	1007×4047, 1007×3007	Bidirectional Loading	42%	23.70kg/m2
50	25×25/50×50	8.0/6.0	1524×4000	Bidirectional Loading	55%	28.50kg/m2

◆ Surface treatment

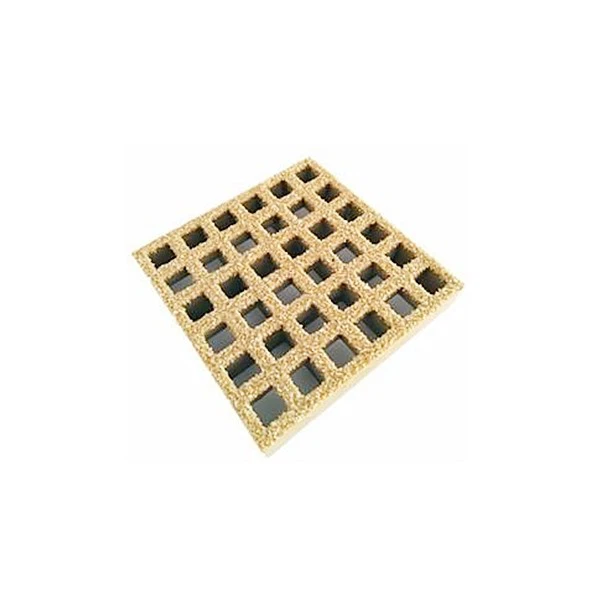

There are three surface types available: concave surface, grit surface, smooth surface.

Q1: How do you ensure the quality of FRP products?

A: All products are manufactured in our own factory under strict ISO-based quality control. We perform raw material testing, process monitoring, and final inspection to ensure every panel meets strength, durability, and corrosion-resistance requirements.

Q2: Where can FRP products be used?

FRP products are ideal for chemical plants, wastewater facilities, offshore platforms, walkways, platforms, stairs, and other areas that require corrosion resistance, lightweight structure, and long service life.

Q3: Do you provide after-sales support?

Yes. We provide clear documentation, installation guidelines (if needed), and technical support. If any quality issue is confirmed after delivery, we offer replacement, rework, or other agreed solutions.

Q4: Can you help with project-specific requirements?

Absolutely. Our team can suggest the right resin system, grating type, and surface finish for your application, and provide drawings or design assistance to ensure project success.
