FRP Mesh Panels

FRP mesh panels are one of our most versatile grating products, suiting just about any application.
✔️ Bi-directional Strength, Efficient Panel Usage.
✔️ Different Apertures & Surfaces.
✔️ Factory Direct Sales.
✔️ Comply with International Standards.

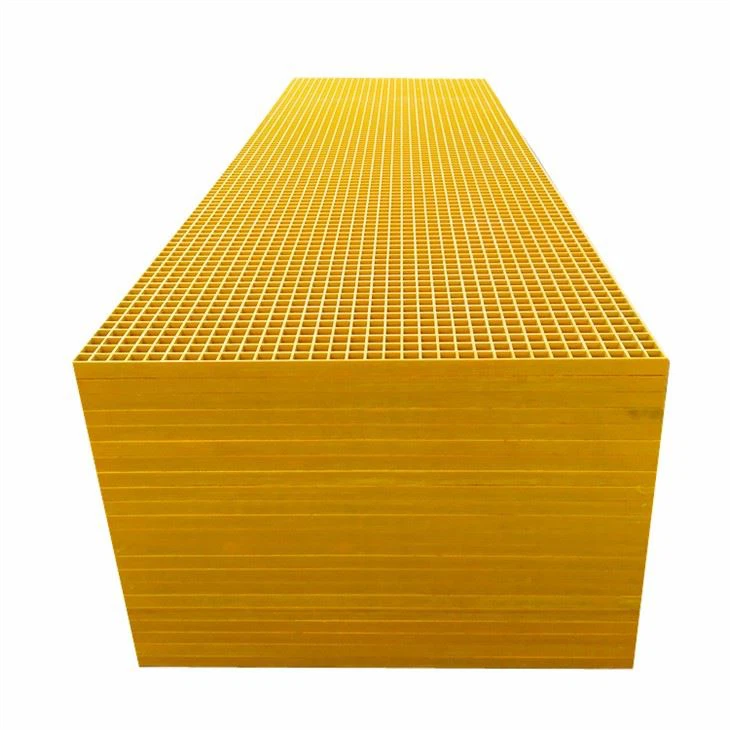

Mach’s FRP mesh gratings are designed to be installed as large panels and provide superior corrosion resistance in extreme conditions. Different from FRP pultruded gratings, our FRP mesh panels can provide bi-direction mechanical properties to carry the same load no matter which direction the load on top of the panel moves due to the interwoven square mesh construction. The mesh openings allow enough light and ventilation to the covered vegetation while allowing rain to fall through, avoiding the hazards of stagnant water on the surface and completely eliminating the potential for slipping and falling.

Our FRP mesh panels are the most versatile grating products widely used for walkways, accessways, catwalks, trench and drain covers, stairs, and platforms at height or floor level. We can supply you with regular mesh, micro mesh, mini mesh, or rectangular mesh according to your project requirements.

Material	Resin + E-Glass + Aluminum Hydroxide
Resin Type	ORTHO, ISO, VE, PHENOLIC
Color	Custom
Surface	Meniscus top, integrally applied grit top, aluminum oxide grit, smooth surface, and aqua grit
Grating Thickness	13, 15, 20, 25, 30, 35, 38, 40, 50, 60, 63

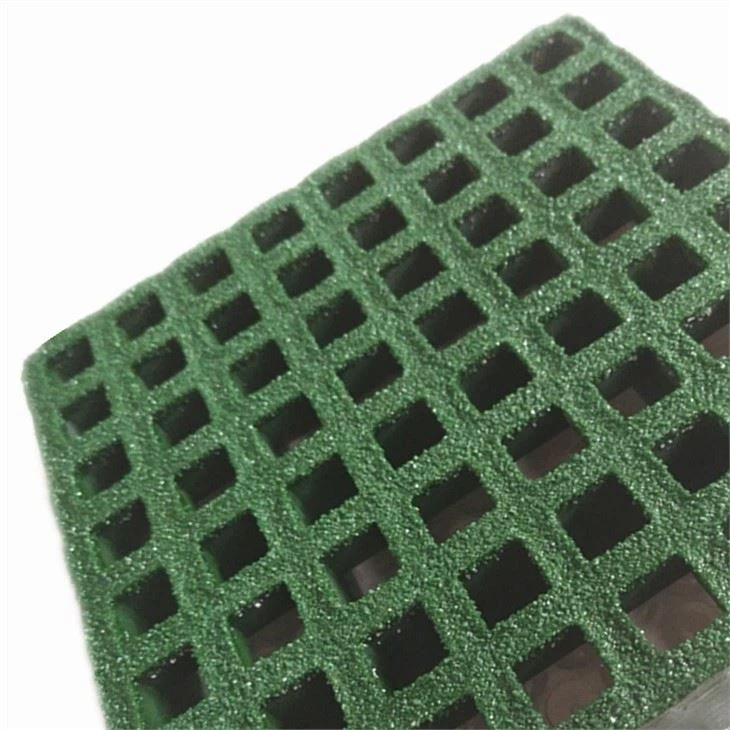

Mesh Size	Regular Mesh	SM 38×38, SM 40×40, SM 50×50, SM 50.8×50.8, SM 79×79, SM 83×83
	Micro Mesh	SM 38(12.7×12.7)

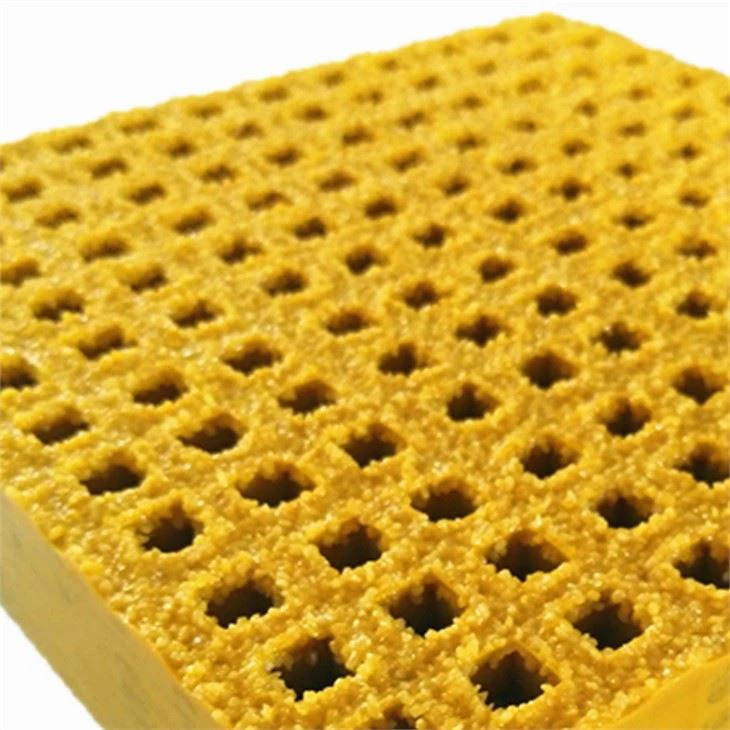

	Mini Mesh	SM 38(19×19), SM 40(20×20), SM 50(25×25), SM 52(26×26)

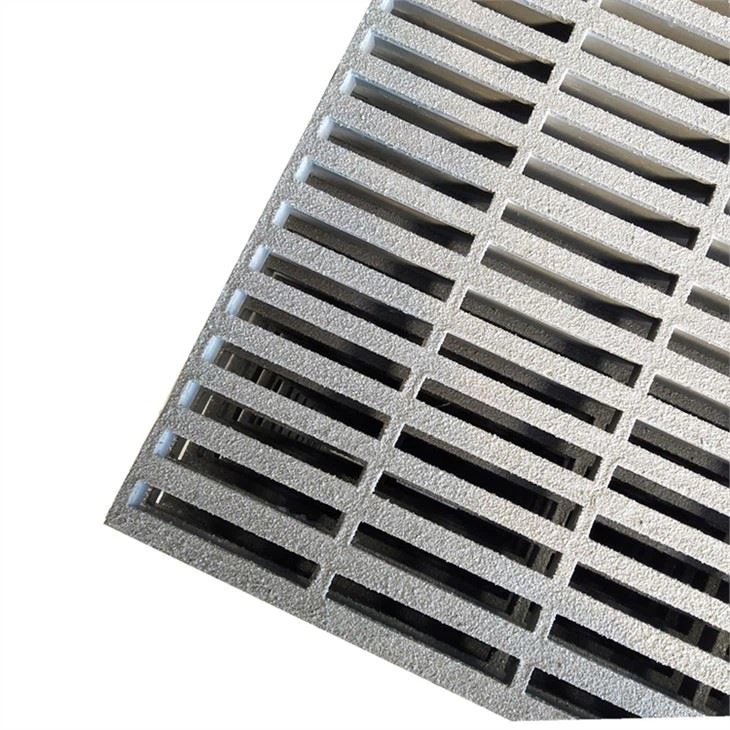

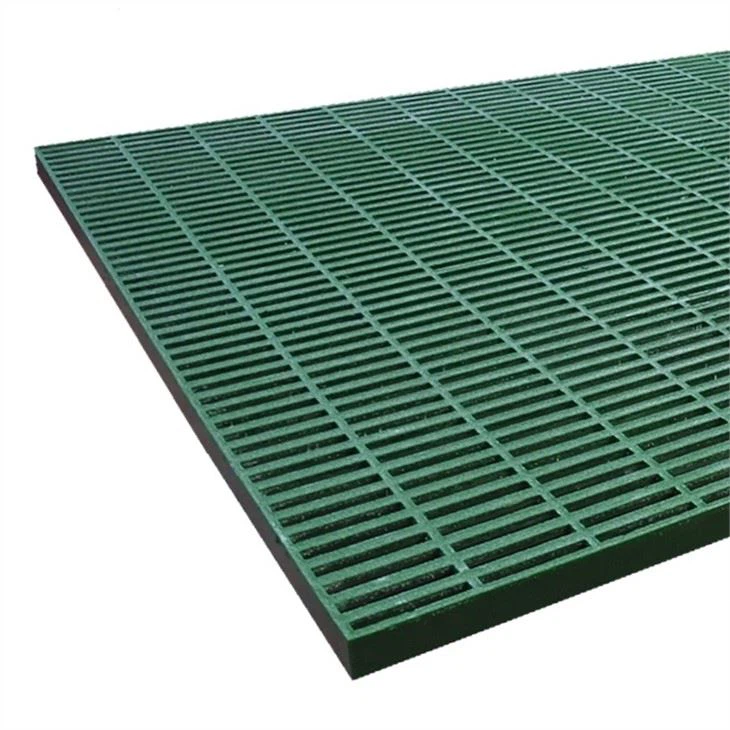

	Rectangular Mesh	RM 25×50, RM 25×100, 38×100, RM 25×152, RM 38×152, RM 60×220
Panel Size	1220×3660, 1220×4000, 1220×2440, 915×3050, 915×3050, 1247×4047, 1007×4047, 1007×3007, 1524×4000
Fire Rating	All tests are carried out according to ISO 9239:1:2010.

Also available in non-standard sizes and finishes.

Mini mesh panels have more load bearing capacity per sqr mtr than regular square mesh panels and are comfortable enough to stand on for long periods.

Our workshop is fully equipped, with sophisticated cutting processes and fabrication techniques.

Q1: How do you ensure the quality of FRP products?

A: All products are manufactured in our own factory under strict ISO-based quality control. We perform raw material testing, process monitoring, and final inspection to ensure every panel meets strength, durability, and corrosion-resistance requirements.

Q2: Where can FRP products be used?

FRP products are ideal for chemical plants, wastewater facilities, offshore platforms, walkways, platforms, stairs, and other areas that require corrosion resistance, lightweight structure, and long service life.

Q3: Do you provide after-sales support?

Yes. We provide clear documentation, installation guidelines (if needed), and technical support. If any quality issue is confirmed after delivery, we offer replacement, rework, or other agreed solutions.

Q4: Can you help with project-specific requirements?

Absolutely. Our team can suggest the right resin system, grating type, and surface finish for your application, and provide drawings or design assistance to ensure project success.
