Fire Rating FRP Grating

Fire rating FRP grating, also known as FRP phenolic grating, has passed U.S.Coast Guard Level 2 (L2 Tests, which contains the characteristics required by L3 Tests).
Accept Customized FRP gratings
A Choice of RAL Colors Available

Fire rating FRP grating is made of the phenolic resin by a more rigorous process. It has high strength, high flame retardancy, low smoke density, low toxicity, light weight, non-slip surface, maintenance-free, UV resistance, impact resistance, corrosion resistance and aging resistance. The default color is the original resin color: reddish brown.
Common models of FRP molded phenolic grating: 38×38×30, 38×38×38, 50×50×50, 38×152×38, and the common model of FRP pultruded phenolic grating is I6010.
Our FRP phenolic product system mainly includes FRP phenolic grating, FRP stair tread system and other FRP phenolic products. Because of its high flame retardancy, low smoke density, corrosion resistance and high strength, FRP phenolic grating has been widely used in offshore oil platforms, escape boat cargo ships, oil tankers, drilling platforms, as well as the subway, escape or rescue sites of coal mine.

Details as follows:
◆ All pedestrian passages
◆ Platform or aisle
◆ Emergency exit runway, fire passage or emergency exit
◆ Catwalks, stairs
◆ Ring zone, fence
◆ Escape passages and exits of tunnels, subways

Product Specifications

Unit: mm

Item	Fire rating FRP grating/FRP phenolic grating
Standard	International Standard (CERTIFIED by the American ABS Classification Society)
Conductivity	Non-conductive
Flame retardant level	L2 (CERTIFIED by USCG Fire Rating)
Available Color	Reddish Brown, Green

Common Sizes of FRP Phenolic Grating

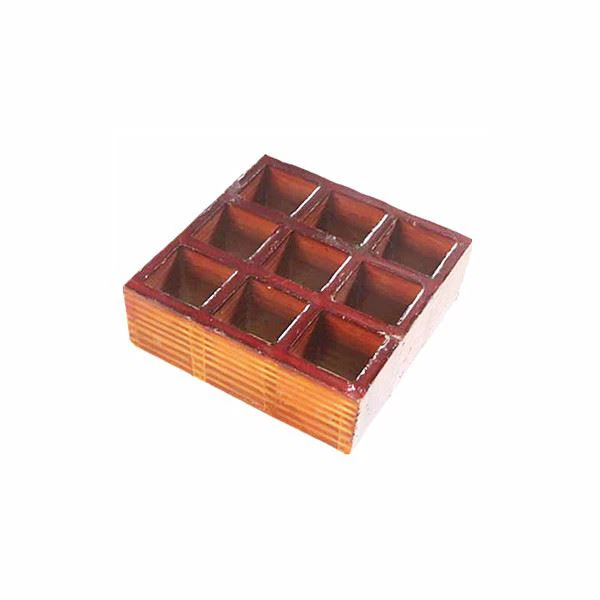

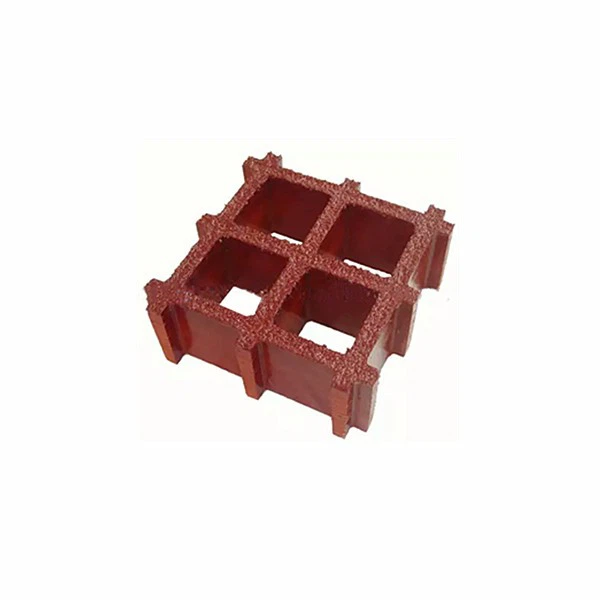

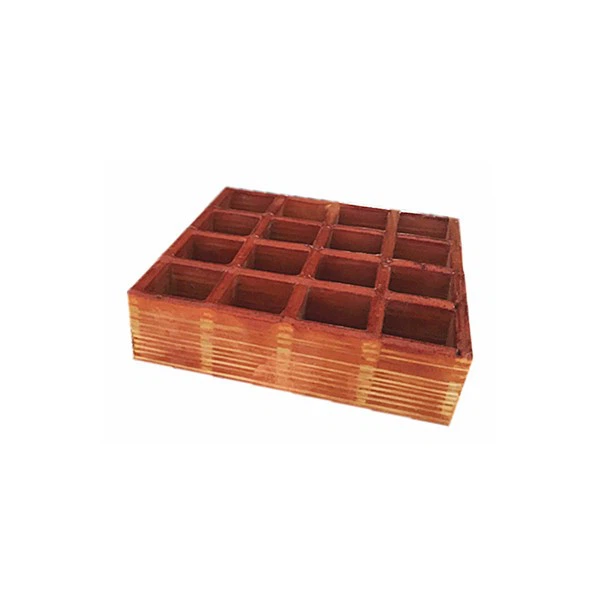

Molded phenolic grating:

Unit: mm

Grating Thickness	Mesh Size	Load Bar Thickness(Top/Bottom)	Available Panel Size	Open Area	Weight
30	38×38	6.5/5.0	1524×4000 1220×4000 1220×3660 1220×2440 915×3050	68%	14.60kg/m2
38	38×38	7.0/5.0	1524×4000 1220×4000 1220×3660 1220×2440 915×3050	68%	19.50kg/m2
50	50×50	7.0/5.0	1788×4531	78%	20.80kg/m2

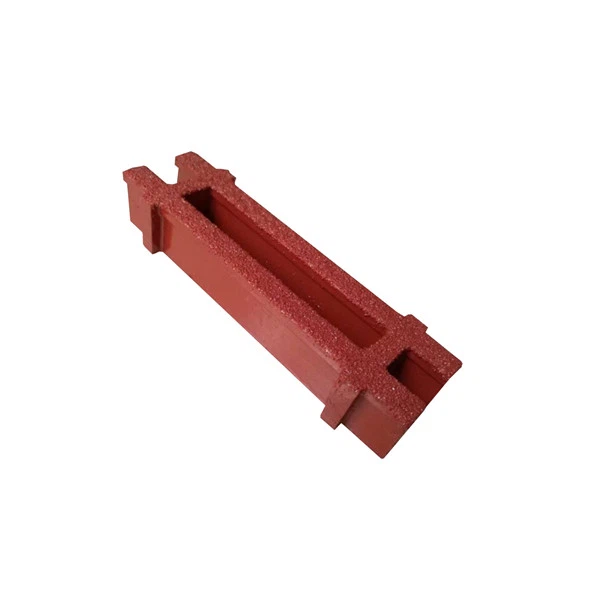

38	38×152	8.0/6.0	1220×3660 1220×2440 915×3050	67%	15.92kg/m2

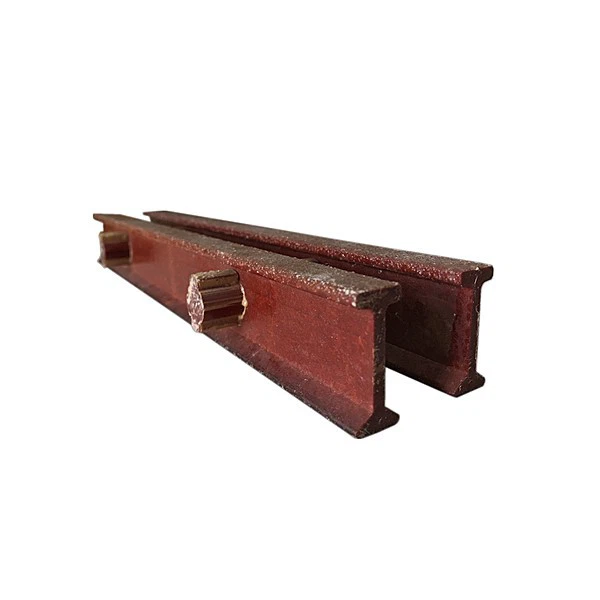

Pultruded phenolic grating:

Unit: mm

Model No.	Grating Thickness	Pultrusion Beam Size(Top/Bottom)	Weight(with CD tip)	Weight(with three core pin)	Open Area
I6010	25	15/15	9.7kg/m2	11.2kg/m2	60%

Q1: How do you ensure the quality of FRP products?

A: All products are manufactured in our own factory under strict ISO-based quality control. We perform raw material testing, process monitoring, and final inspection to ensure every panel meets strength, durability, and corrosion-resistance requirements.

Q2: Where can FRP products be used?

FRP products are ideal for chemical plants, wastewater facilities, offshore platforms, walkways, platforms, stairs, and other areas that require corrosion resistance, lightweight structure, and long service life.

Q3: Do you provide after-sales support?

Yes. We provide clear documentation, installation guidelines (if needed), and technical support. If any quality issue is confirmed after delivery, we offer replacement, rework, or other agreed solutions.

Q4: Can you help with project-specific requirements?

Absolutely. Our team can suggest the right resin system, grating type, and surface finish for your application, and provide drawings or design assistance to ensure project success.
