Fiberglass Grating Fasteners
- Customizable Options – Tailored size, resin type, and surface finish to meet your project needs.
- Factory-Direct Pricing – Save costs with direct production from our source factory.
- Free Sample Design – Get a sample or design validation before bulk production.
- Global Quality Supply – Reliable quality and on-time delivery worldwide.
Fiberglass grating fasteners are used as special joints for FRP gratings. Mach’s Grating supplies a number of different types of 316SS clips to attach its various molded and pultruded gratings to supporting members. There are screw holes in the middle of the clip for screwing, which is very convenient to install. The connection between the fixing clip and the support structure can be connected by bolts or nuts or by rivets.

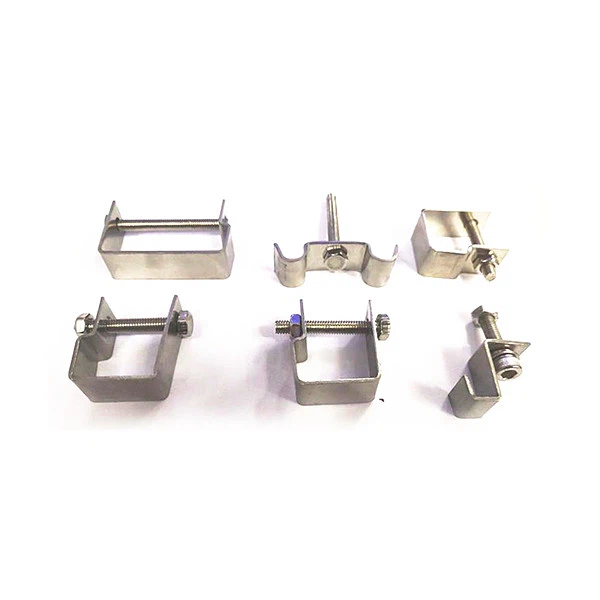

Mach’s provides you following fiberglass grating fasteners: M Clips (Saddle Clips), G Clips, C Clips (End Pannel Clips), L Clips (J Clips), Paw Clips, W Clips(Washer Clips), T Clips and CSSM Clips-Plan A
Product Specifications
Product surface treatment: hot-dip galvanizing, cold-galvanizing, stainless steel electropolishing.

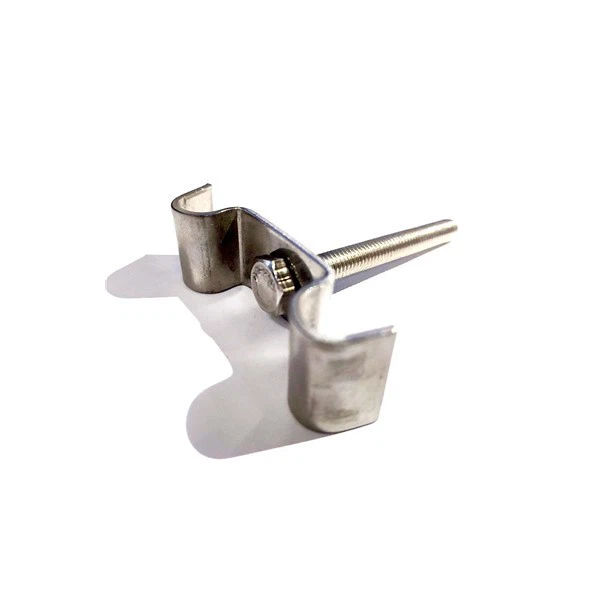

M Clips (Saddle Clips)
Saddle Clips are used for fixed stability and are used for the positioning of the grill bracket and the bracket. It is recommended for stair treads, moulded gratings and pultruded gratings because of its good capability.
G Clips
They are more cost-effective and reliable than other clips. There is no need to drill holes, use simple hand tools to install, no damage to structural components, paints or coatings.
C Clips (End Pannel Clips)
End Pannel Clips are used to connect the edges of two grilles, making the platform have good overall performance. It shall be held at intervals of 2′-3′ to meet industry requirements.
L Clips (J Clips)
L Clips, also called J Clips, are used for special positioning connections between medium loads gratings and bracket materials. They are suitable for molded gratings and pultruded gratings.
Paw Clips
PAW Clips produced by Mach’s provide excellent two-way resistance to loads generated by earthquakes or other lateral forces. It puts four load bars on the holders to ensure the ultimate load carrying capacity of the square grid molded grating.
W Clips(Washer Clips)
W Clips, also known as Washer Clips, are designed specifically for holding down plates or covered gratings. They can be used for both molded gratings and pultruded gratings.
T Clips
T Clips are used to hold the pultrued grating on the holder. When using these clips, pair the clips as shown:
CSSM Clips-Plan A
The CSSM system was developed by Mach’s Grating, which was an ideal choice for potential vibration applications. We improved the G clip by replacing the steel coated jaw with a durometer neoprene pad. Fastening clamps are constructed in the “spring” to remove looseness.
Q1: How do you ensure the quality of FRP products?
A: All products are manufactured in our own factory under strict ISO-based quality control. We perform raw material testing, process monitoring, and final inspection to ensure every panel meets strength, durability, and corrosion-resistance requirements.
Q2: Where can FRP products be used?
FRP products are ideal for chemical plants, wastewater facilities, offshore platforms, walkways, platforms, stairs, and other areas that require corrosion resistance, lightweight structure, and long service life.
Q3: Do you provide after-sales support?
Yes. We provide clear documentation, installation guidelines (if needed), and technical support. If any quality issue is confirmed after delivery, we offer replacement, rework, or other agreed solutions.
Q4: Can you help with project-specific requirements?
Absolutely. Our team can suggest the right resin system, grating type, and surface finish for your application, and provide drawings or design assistance to ensure project success.
