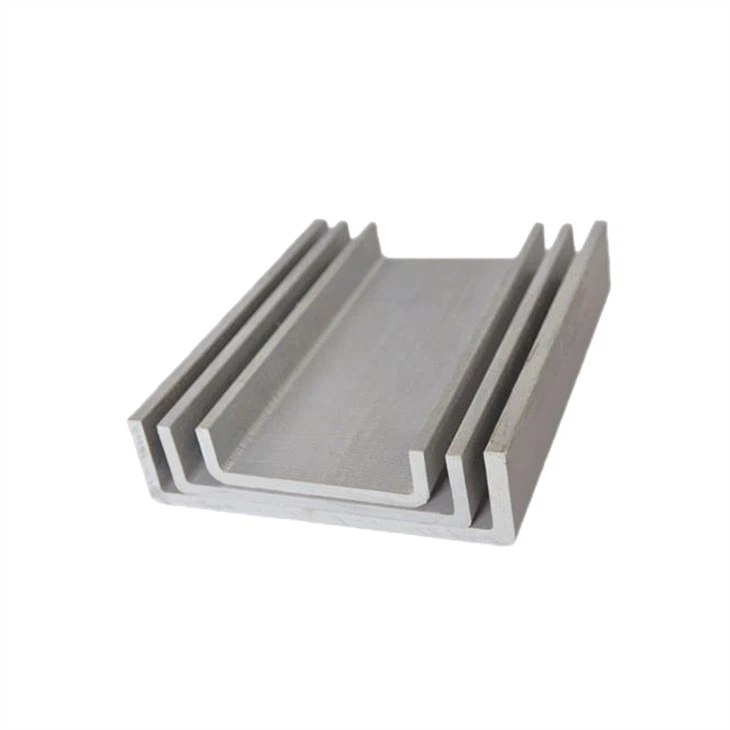

Fiberglass C Channel

Fiberglass c channel is gaining more popularity over conventional strengthening techniques.
Mach’s can manufacture all kinds of fiberglass structural sections as per client requirements.

An exposure of year-round acid, alkali, salts, and other substances means that all structural materials must remain durable. It is considered that conventional structural materials have short life span and high installation costs, a composite pultruded option is designed and fabricated. In our daily life, it is not difficult to see the figure of fiberglass c channel, which is usually used for the bracing, strengthening and retrofit of structures.

Fiberglass c channel is a perfect alternative to the steel or aluminum channel, which can endure many years of temperature swings and environmental changes without corrosion or maintenance. It can reduce costs and help improve long-term performance.

Have you considered the strength and corrosion resistance of fiberglass c channel for your next application? Mach’s has full fledged in house Testing Lab to ensure best in class quality product is delivered every time.

Product Material	ECR Glass Fiber + Resin (ORTHO, ISO, VE)+Filling (ATH)
Manufacturing Technique	Pultrusion Process (Glass fiber as reinforcement material, resin as crosslinking agent auxiliary material)
Color	Any Color Selected from the RAL
Shape	“C” Shape
Dimension	See the Form Below or Custom Made
Application	Bracing, Strengthening and Retrofit of Structures

Unit: mm

Product Dimension

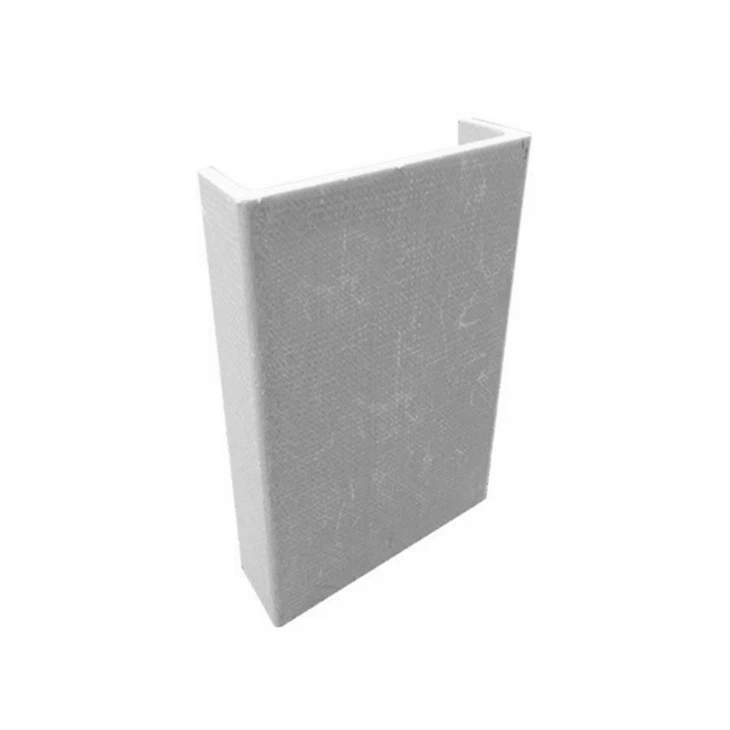

Sample Graph Model: C50 Flange Width (b): 14mm Depth (d): 50mm Thickness (t): 3.2mm
Model	Flange Width (b)	Depth (d)	Thickness (t)
C50	14	50	3.2
C76A	22	76	6.4
C76B	25	76	4.8
C76C	38	76	6.4
C102A	27	102	3.2
C102B	29	102	6.4
C102C	29	102	6.4
C102D	35	102	4.8
C102E	44	102	4.8
C120	50	120	5.0
C150	41	150	8.0
C152A	42	152	6.4
C152B	42	152	8.0
C152C	42	152	9.5
C152D	50	152	8.0
C203A	56	203	6.4
C203B	56	203	9.5
C254	70	254	12.7
C210A	55	210	5.0
C210B	80	210	5.0
C210C	85	210	5.0
C120A	25	120	5.0
C120B	30	120	5.0
C120C	40	120	5.0

We can manufacture a variety of specifications and models of profiles, you can choose at any time!

Q1: How do you ensure the quality of FRP products?

A: All products are manufactured in our own factory under strict ISO-based quality control. We perform raw material testing, process monitoring, and final inspection to ensure every panel meets strength, durability, and corrosion-resistance requirements.

Q2: Where can FRP products be used?

FRP products are ideal for chemical plants, wastewater facilities, offshore platforms, walkways, platforms, stairs, and other areas that require corrosion resistance, lightweight structure, and long service life.

Q3: Do you provide after-sales support?

Yes. We provide clear documentation, installation guidelines (if needed), and technical support. If any quality issue is confirmed after delivery, we offer replacement, rework, or other agreed solutions.

Q4: Can you help with project-specific requirements?

Absolutely. Our team can suggest the right resin system, grating type, and surface finish for your application, and provide drawings or design assistance to ensure project success.
