Fiberglass Angle Shapes

Fiberglass angle shapes are created through a pultrusion process, which offers superior strength, stiffness, wear protection, and long-term corrosion resistance.
✔️ Facilitated with Flame Retardant.
✔️ Factory Direct Sales, Affordable Price Range.
✔️ Custom Fabrication as Required.
✔️ Strictly Tested for Mechanical & Physical Properties.

Ensuring that the working area has safe support structures is a top priority. Traditional support structures made from steel, aluminium, wood and concrete are prone to rust or rot in extreme environments.

For example, in the working environment of a chemical processing plant, rust and wear take their toll on traditional support structures and cause various hazards. A corrosion-free and long-lasting solution is needed to solve these problems.

Fiberglass pultruded profiles such as fiberglass angle shapes from Mach’s provide a long-lasting foundation and are widely used in construction and general use. Our angle shapes are manufactured from a pultrusion process, which combines fiberglass and resins in a polymer matrix designed to meet demanding chemical, flame retardant, electrical, strength and environmental standards.

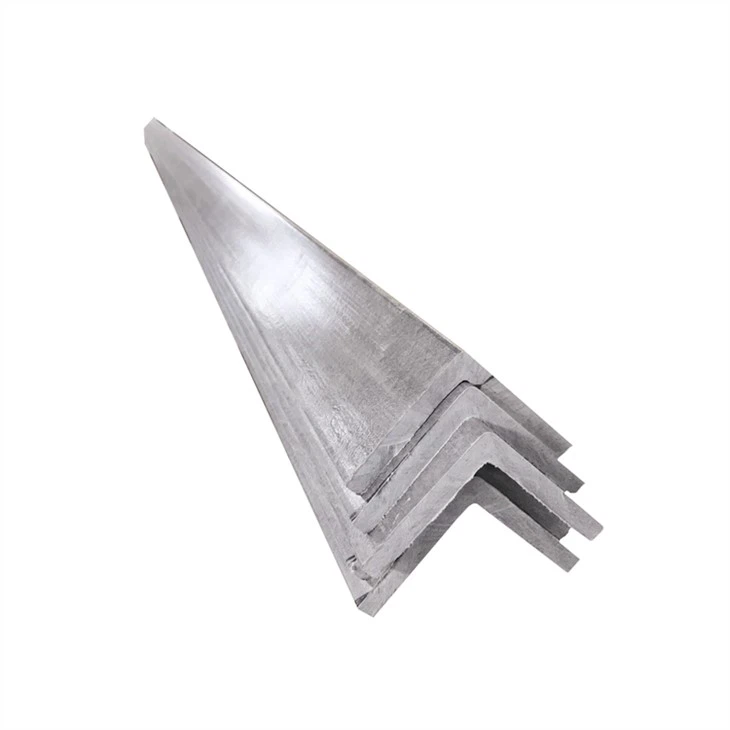

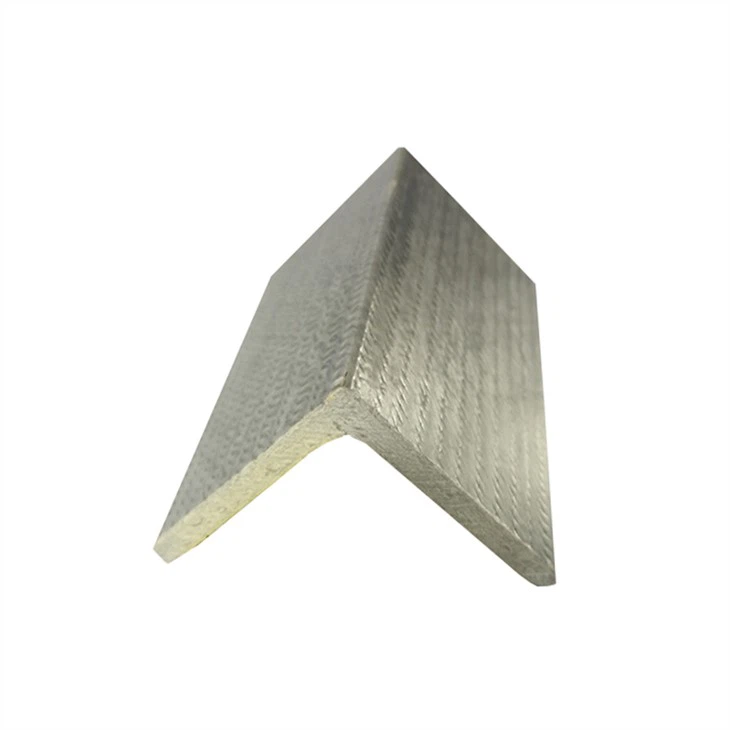

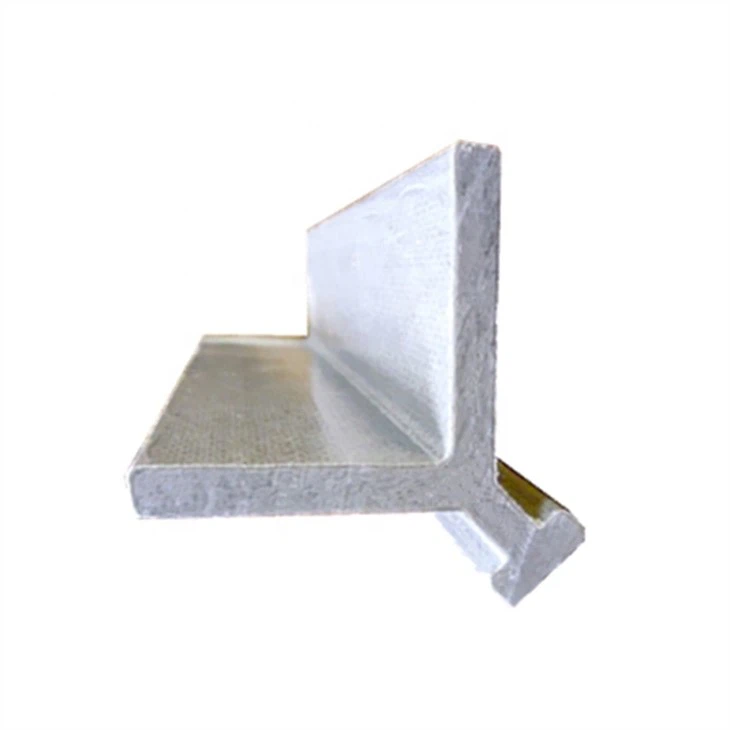

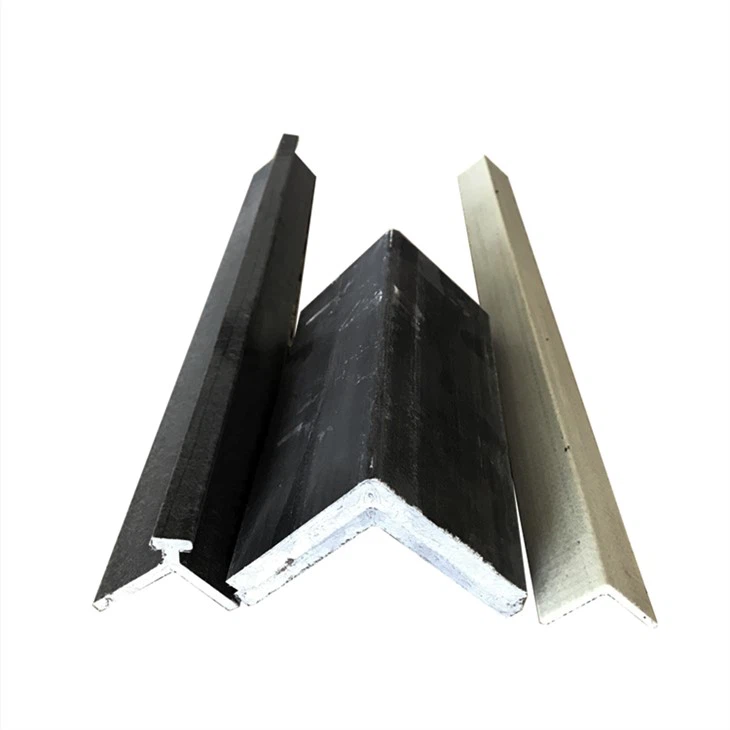

Mach’s fiberglass angle shapes are available in fiberglass 90 degree angle and fiberglass embedment angle. Fiberglass 90 degree angle features a 90° equal leg angled shape and can be used as the foundation of various structural applications such as platforms, walkways and equipment supports. Fiberglass embedment angle, also known as fiberglass curb angle, has a built-in, continuous angle that locks into concrete, eliminating the need for individual anchors. It is a replacement for steel-concrete embedment angles.

Material	Fiberglass and fire retardent vinyl ester
Shape	“L” or “Y”
Color	Grey or custom
Length	Up to 6m
Size	See the form below or custom upon request
Application	“L” shape: Support structures of platforms, walkways and equipment supports, frame of storage racks or goods shelf, etc. “Y” shape: A replacement for steel-concrete embedment angles.

Unit: mm

Size – Fiberglass 90 Degree Angle
Product Sectional View	Flange Width (A)	Depth (B)	Thickness (T)
	38	38	4.8
	38	38	6.4
	50	50	3.2
	50	50	6.4
	76	76	3.2
	76	76	4.8
	76	76	6.4
	76	76	9.5
	76	76	12.7
	101	101	6.4
	101	101	8.0
	101	101	9.5
	101	101	12.7
	152	152	6.4
	152	152	9.5
	152	152	12.7

Unit: mm

Size – Fiberglass Embedment Angle/Fiberglass Curb Angle
Product Sectional View	Flange Width (A)	Depth (B)	Thickness (T)
	38	25	6.4
	38	38	6.4
	38	50	6.4

The standard color is gray or slate gray.

Other sizes can be custom manufactured upon request.

Q1: How do you ensure the quality of FRP products?

A: All products are manufactured in our own factory under strict ISO-based quality control. We perform raw material testing, process monitoring, and final inspection to ensure every panel meets strength, durability, and corrosion-resistance requirements.

Q2: Where can FRP products be used?

FRP products are ideal for chemical plants, wastewater facilities, offshore platforms, walkways, platforms, stairs, and other areas that require corrosion resistance, lightweight structure, and long service life.

Q3: Do you provide after-sales support?

Yes. We provide clear documentation, installation guidelines (if needed), and technical support. If any quality issue is confirmed after delivery, we offer replacement, rework, or other agreed solutions.

Q4: Can you help with project-specific requirements?

Absolutely. Our team can suggest the right resin system, grating type, and surface finish for your application, and provide drawings or design assistance to ensure project success.
